FI-X Series Nylon 46 UL94V-0 Beige 1.0mm 30 Pin LVDS Connectors for Thin LCD Interface

FI-X Series Nylon 46 UL94V-0 Beige 1.0mm 30 Pin LVDS Connectors for Thin LCD Interface

FI-X 1.0mm housing connector for PCB-to -cable ,30 pin ,beige

Technical Datasheet:

The FI-X series connectors are designed for thin LCD interface applications ,and are compatible with high-speed differential transmissions.they are ideal for use in compact notebook PCs,and other applications where size and weight are critical considerations.

FEATURES:

• Compatible with high-speed differential transmission and high-level impedance matching
• Greatly improved ground condition which is directly related to EMI characteristics
• FPC provide stable grounding to the PCB
• Compatible with a variety of cables such as thin wire coaxial cables and flex circuitry

Payment &shipping Terms :

Minimum Order Quantity: 1000 PCS
Shipping terms:By express or by sea
Delivery Time :7-10 working days
Packaging Details :PE bag packing +outer carton

Product Details :

Applicable wire: AWG#28-32

Pitch:1.0mm

Poles: 20,30

Current rating: 1A AC/DC

Contact Material: Phosphor Bronze

Contact Plating: Tin/Gold plated

Specifications :

Applicable wire: AWG#28-32

Voltage rating: 200V AC/DC

Current rating: 1A AC/DC

Withstand voltage: 500V AC/minute

Working temperature: -40°C to +80°C

Insulation resistance: 100MΩ Min

Contact resistance: 40MΩ Max.

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

Main Export Markets:

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality

lvds cable connector

lvds display connector

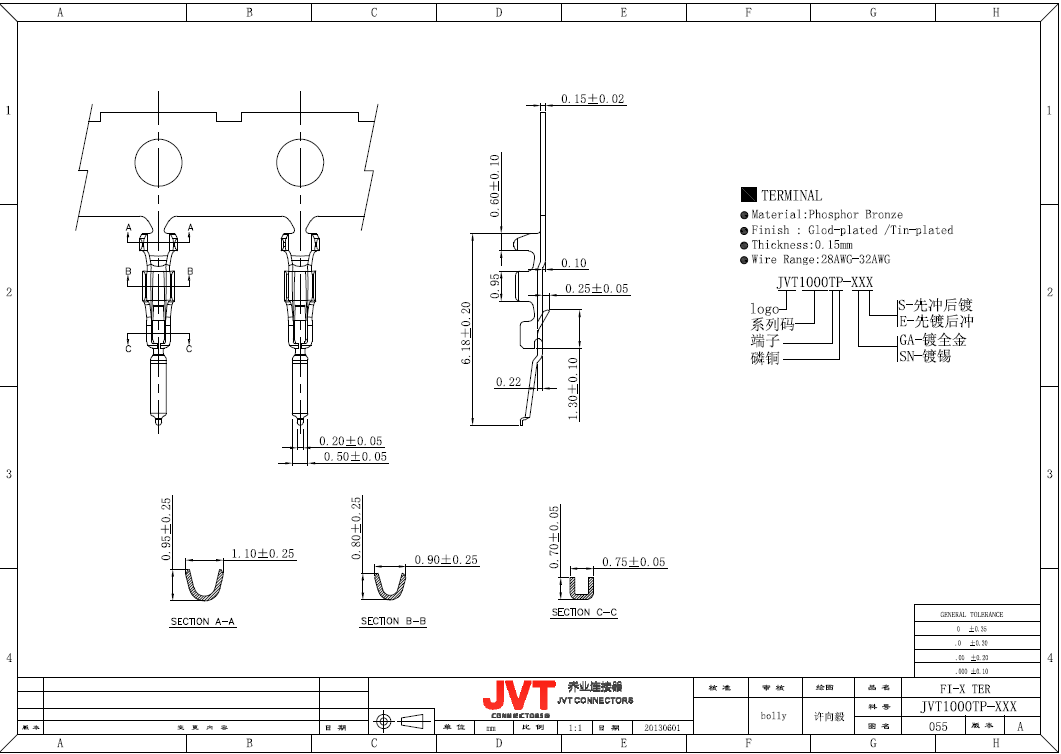

FI-X Series Nylon 46 UL94V-0 Beige 1.0mm 30 Pin LVDS Connectors for Thin LCD Interface Images
