Nylon 66 UL94V-0 Housing LVDS Display Connector 1.0mm Pitch 20 / 30 Poles

Dongguan JVT Connectors Co., Ltd
Contact Now

Nylon 66 UL94V-0 Housing LVDS Display Connector 1.0mm Pitch 20 / 30 Poles

Brand Name : JVT

Model Number : JVT1019

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 1000 PCS

Price : Negotiation

Payment Terms : T/T or Western Union

Supply Ability : 300000 per month

Delivery Time : 7-10 working days

Packaging Details : PE bag packing +outer carton

series : DF19

pitch : 1.0mm

color type : white

current rating : 1A AC / DC

Contact Now

Nylon 66 UL94V-0 Housing LVDS Display Connector 1.0mm Pitch 20 / 30 Poles

JVT LVDS connectors housing and terminal ,1.0mm pitch ,20 poles ,Nylon 66 UL94V-0​

Payment &shipping Terms :
Minimum Order Quantity: 1000 PCS
Shipping terms:By express or by sea
Delivery Time :7-10 working days
Packaging Details :PE bag packing +outer carton

Specifications :

Pitch: 1.0mm

Poles: 20,30

Applicable wire: AWG#28-32

Voltage rating: 125V AC/DC

Current rating: 1A AC/DC

Withstand voltage: 500V AC/minute

Working temperature: -25°C to +85°C

Insulation resistance: 1000MΩ Min

Contact resistance: 20MΩ Max.

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality


Product Tags:

lvds cable connector



lvds display connector


China Nylon 66 UL94V-0 Housing LVDS Display Connector 1.0mm Pitch 20 / 30 Poles wholesale

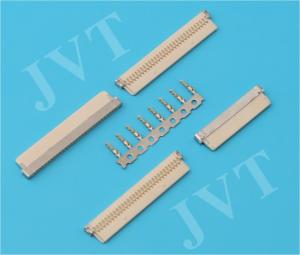

Nylon 66 UL94V-0 Housing LVDS Display Connector 1.0mm Pitch 20 / 30 Poles Images
