Product name:
jumper p.2.54mm, open, gold flash, height 6mm green colour
2.54mm Mini Jumper Connector ,2poles ,blue ,PBT material ,10K/bag
mini micro jumper for 2.54 mm pin header
Datasheet (PDF) & Other Documents:

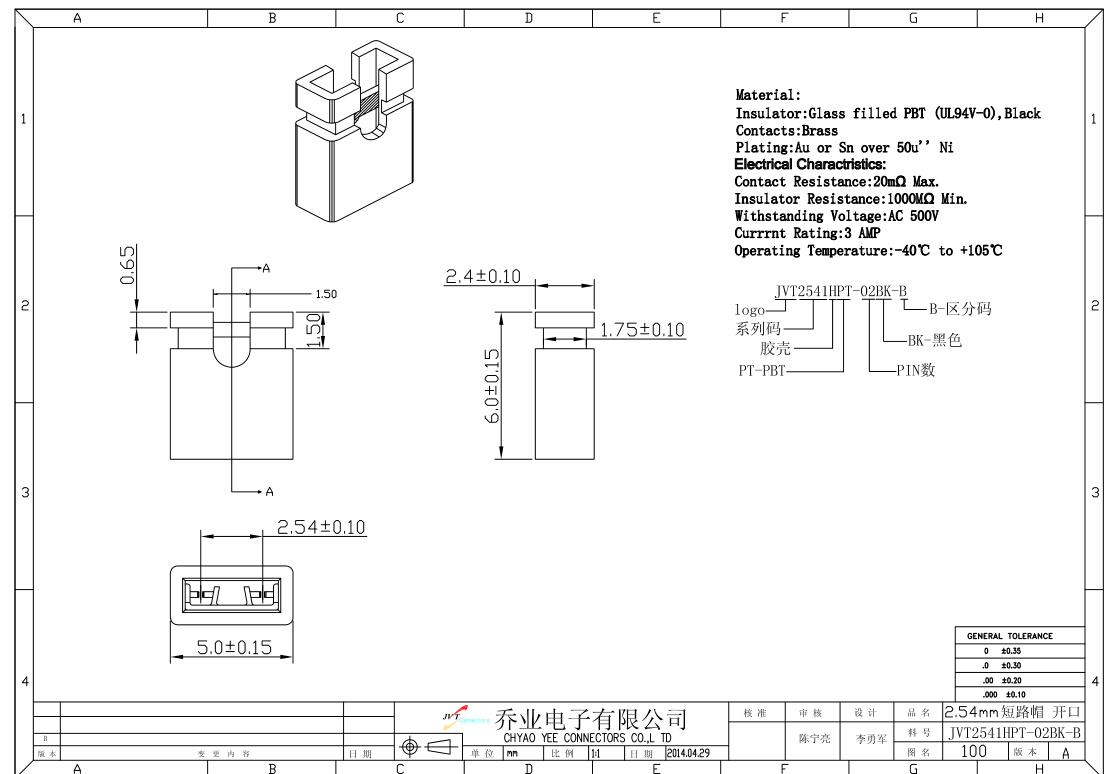

1.JVT2541HPT-02BK-B.pdf
2.PCB SMT header connector.pdf
3.2016 JVT catalogue.pdf
Specification Standardized:
Pitch: 2.54 mm
Contact: copper alloy
Housing: thermoplastic (UL 94V-0)
Contact resistance: 30m Ohms
- Mini Jumper spec:
- Contact material: phosphor bronze or brass
- Standard: PBT + 30%GF
- Contact plating: Au or Sn over 50μNi
- Plastic height: 3.0, 3.5, 4.0, 4.5, 5.5, 6.0, 6.5, 8.5, 11.2 or 13.5mm
- Current rating: 1.0, 1.5 or 3.0A
- Minimum contact resistance: 20 or 30mΩ
- Minimum insulation resistance: 500 or 1,000MΩ
- Withstanding voltage: 100, 500 or 1,000V AC
- Insulator material: polyester (UL94V-0)
- Operation temperatures: -40 to +105°C
- 2.54mm mini jumper,any color
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
Primary Competitive Advantages:
- Service
- Country of Origin
- Experienced Staff
- Guarantee/Warranty
- International Approvals
- Price
- Prompt Delivery
- Quality Approvals
|
Main Export Markets:
- Asia
- Australia
- Central/South America
- Mid East/Africa
- North America
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
Product Tags:
|
|
Height 6mm Green Mini Jumper Connector For 2.54 mm Pin Header 2 Poles 30m Ohms Images
|
