Pitch 2.0mm Wire to Wire Connector , 4-15PIN , AWG22-26 , Tin-plated,white color

Product Categories

Dongguan JVT Connectors Co., Ltd

Contact Now

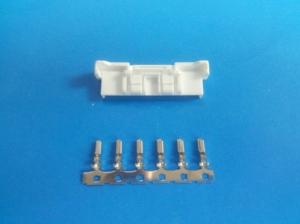

Pitch 2.0mm Wire to Wire Connector , 4-15PIN , AWG22-26 , Tin-plated,white color

Brand Name : JVT

Model Number : JVT 2039

Certification : UL ,RoHS ,REACH

Place of Origin : China

MOQ : 1000

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 500000pcs per day

Delivery Time : 6-8 working days

Packaging Details : Tape&Reel

Category : Wire to Board Connectors

Poles : 4-15

Pitch : 2.0mm

Color : White

Material : Nylon66 UL94V-0

Equivalent : Molex

Contact Now

Pitch 2.0mm ,Wire to Wire Connector , 4-15PIN , AWG22-26 , Tin-plated

JVT offer a complete range of board to board and wire to board connectors including :pin

header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items.

Specification :

Category	Wire to Board Connectors
Equivalent	Molex
Pitch:	2.0mm
Poles:	4-15
Applicable wire:	AWG#22-26
Voltage rating:	250V AC/DC
Current rating:	3A AC/DC
Withstand voltage	1000V AC/minute
Working temperature:	-25°C to +85°C
Contact resistance:	30MΩ Max
Insulation resistance:	1000MΩ Min
Material	Nylon66 UL94V-0
Samples	free

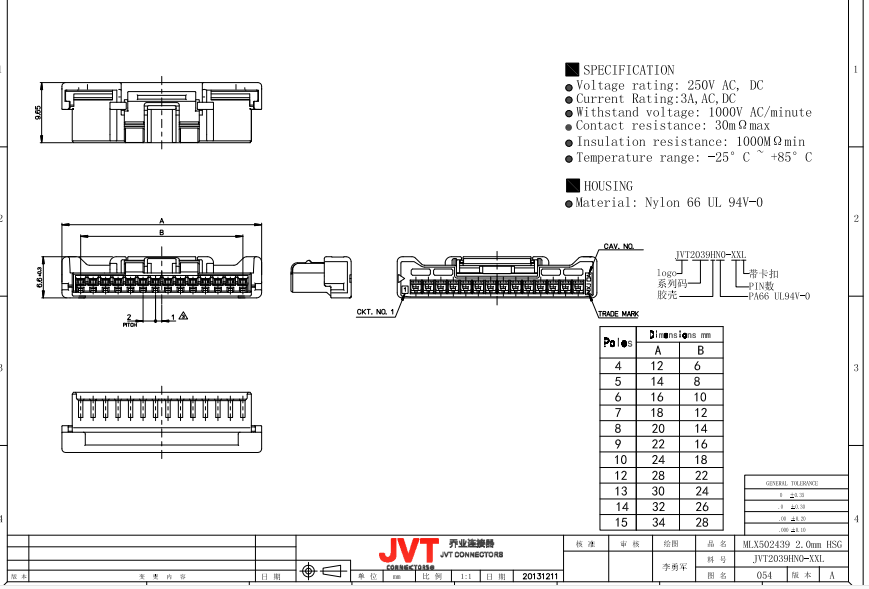

Drawing :

Pitch 2.0mm Wire to Wire Connector , 4-15PIN , AWG22-26 , Tin-plated,white color

Payment Details :

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Service :

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality

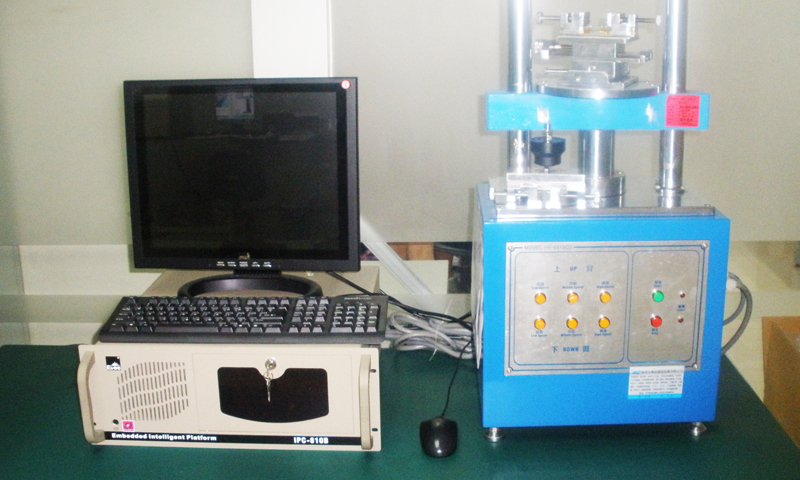

Equipment :

Pitch 2.0mm Wire to Wire Connector , 4-15PIN , AWG22-26 , Tin-plated,white color

Main Export Markets :

• Asia

• Australia

• Central/South America

• Mid East/Africa/North America
