Brand Name : JVT
Model Number : JVT1148&1149
Certification : ISO9001/SGS/UL/ROHS/Reach
Place of Origin : China
MOQ : 1000 PCS
Price : Negotiation
Payment Terms : T/T or Western Union
Supply Ability : 300000 per month
Delivery Time : 7-10 working days
Packaging Details : PE bag packing +outer carton
Equivalent : Molex 39-020-2020
pitch : 4.2mm
Application : Power, Wire-to-Board, Wire-to-Wire
Gender : Receptacle
Color : White and Black
Applicable wire : AWG#18-22
Mini-Fit 4.2mm Receptacle Housing wire to wire connector , Dual Row, 4 Circuits, UL 94V-2, Natural
Part Number: JVT1148&JVT1149
Category: wire to board connector ,power connector ,wire to wire connector
Terminal: Brass , Tin-plated
Housing: PA66,UL94V-2
Wafer: Nylon 66 ,Tin plated
Pitch: 4.2mm
Poles:4
Applicable wire: AWG#18-22
Voltage rating: 250V AC/DC
Current rating: 7A AC/DC
Withstand voltage: 1500V AC/minute
Working temperature: -25°C to +85°C
Insulation resistance: 1000MΩ Min
Contact resistance: 10MΩ Max.

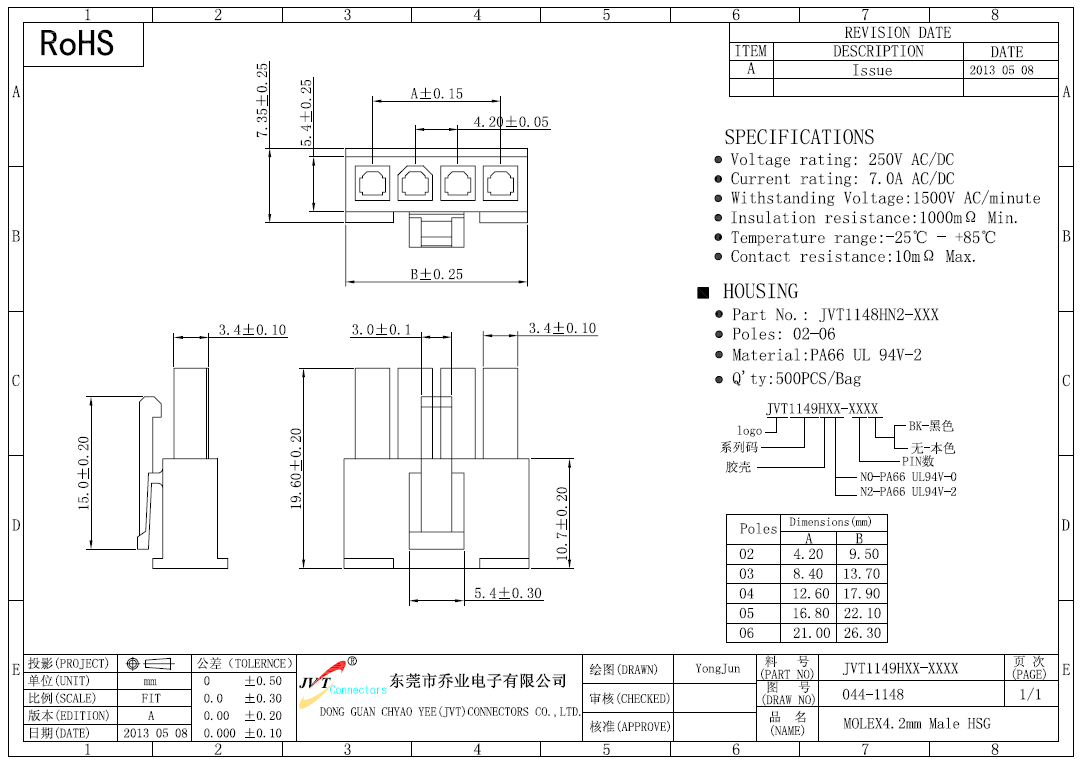

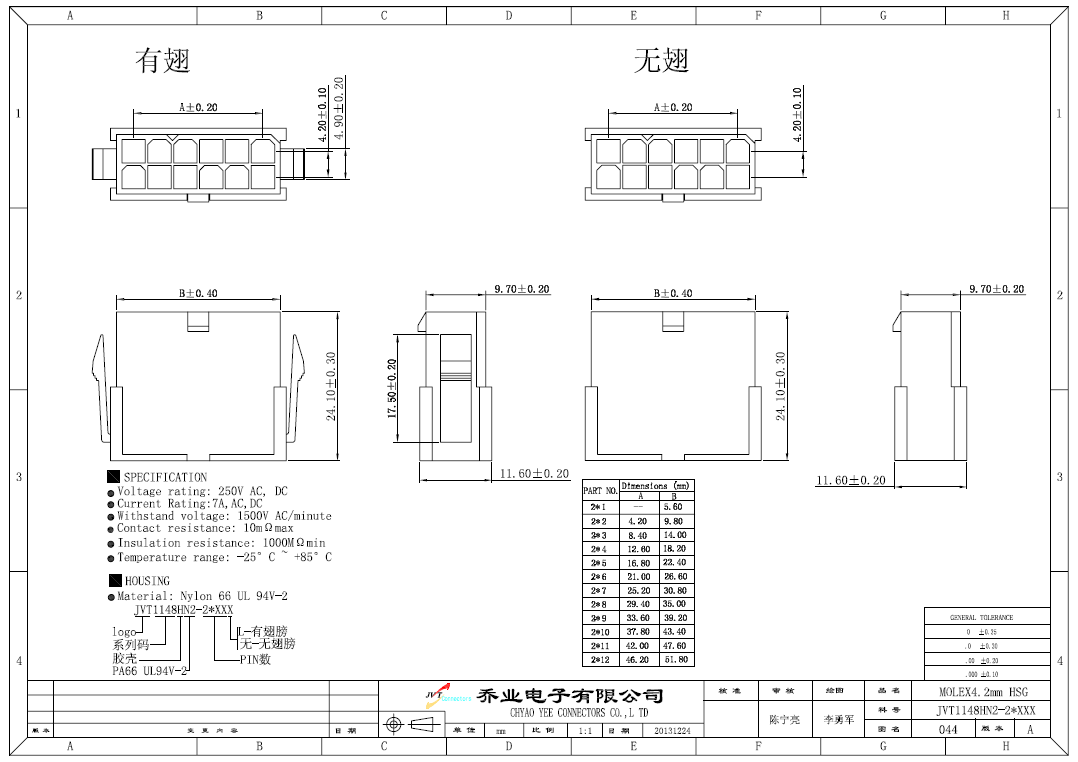

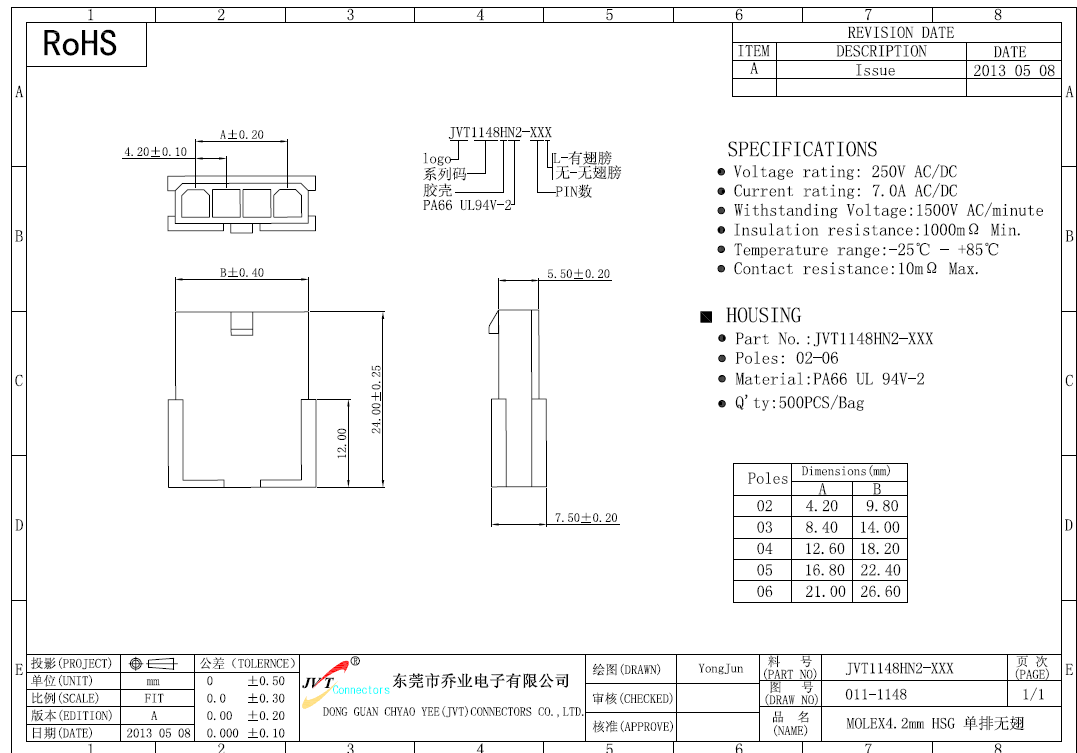

Drawing
Our advantage
Favorable unit price
|
Strict quality control
|
Shortest lead time
|
Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)
|
Accelerated equipments:10 automated injection molding 20 automated pin - setting 6 high precision stamping machines |
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
![]() |
4 Circuits Wire to Wire Connector Mini - Fit 4.2mm Pitch Easy To Operate Images |
