Pitch 4.2mm, PCB Connectors Wire To Board, Single Row ,1-12Pin, Tin-plated

Brand Name : JVT

Model Number : JVT 1150

Certification : UL ,RoHS ,REACH

Place of Origin : China

MOQ : 2000

Price : negotiation

Payment Terms : T/T

Supply Ability : 500000pcs per day

Delivery Time : 5-7days

Packaging Details : Tape&Reel

Pitch : 4.2mm

Poles : 1-12

Material : Nylon 46 UL94V-0

Finish : Tin-plated

Contact Now

Pitch 4.2mm, PCB Connectors Wire To Board, Single Row ,1-12Pin, Tin-plated

JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive.

All are offered with small moq's ,the majority being stocked items.

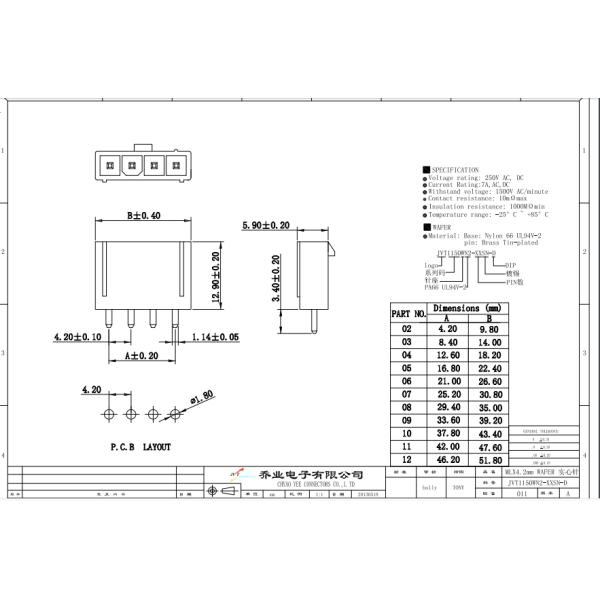

Drawing:

Specification:

Temperature range	-25°C - +85°C
Contact Resistance	10mΩ
Insulation Resistance	1000MΩ
Poles	1-12
Voltage Rating	250V AC/DC
Current Rating	7A AC/DC
Withstanding voltage	1500V AC/minute

Transaction details :

Payment item:T/T

MOQ:1000PCS

JVT Competitive Advantages:

Products with Good Performance
High-Efficiency Lead Time
Friendly Service
Experienced Staff
International Approvals
Competitive Price
