4.0mm Pitch1~ 3 Pole LED Connector , ROHS Pass Smd Wire To Board Connector

Product Categories

Dongguan JVT Connectors Co., Ltd

Contact Now

Brand Name : JVT

Model Number : JVT4002W46-XXSN-S

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 300000 per month

Delivery Time : 7-10 working days

Packaging Details : PE bag packing +outer carton

Material : PA66 66 UL94V-0

Pitch : 4.0mm

No.of Pins : 1~3Pin

Type : SMD Led Connector ,terminal Block

Packing : Reel Packing

Contact Now

4.0mm Pitch1~ 3 Pole LED Connector , ROHS Pass Smd Wire To Board Connector

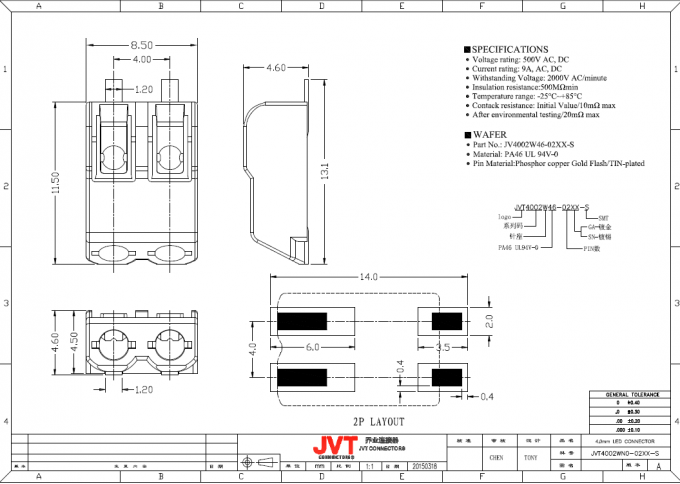

Technical Datasheet:

4.0mm Pitch1~ 3 Pole LED Connector , ROHS Pass Smd Wire To Board Connector

Specification Standardized:

Pitch	4.0mm
Pins	1~3pin
Pin Material	Phospher copper Gold Flash/Tin-plated
Rating Voltage	500V AC/DC
Rating Current	9A AC/DC
Withstand voltage	2000V AC/minute
Operating temperature	-25°C to +85°C
Insulation resistance	500MΩ Min
Contact resistance	20MΩ Max.

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

We are connectors manufacturer with over 15 years experience.

1. Complete Product range.

2. Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS.

3. Close to Shenzhen Port.

4. Punctual & Short lead time.

5. Good quality & Competitive Price.

4.0mm Pitch1~ 3 Pole LED Connector , ROHS Pass Smd Wire To Board Connector Images
