Double Row 2-30 PIin, Wire to board Connector , Housing and Terminal, Color in Black

Product Categories

Dongguan JVT Connectors Co., Ltd

Contact Now

Double Row 2-30 PIin, Wire to board Connector , Housing and Terminal, Color in Black

Brand Name : JVT

Model Number : JVT 1164

Certification : UL ,RoHS ,REACH

Place of Origin : China

MOQ : 1000

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 500000pcs per day

Delivery Time : 5-7 working days

Packaging Details : Tape&Reel

Row : Double

Poles : 2*2-2*30

Pitch : 2.0mm

Material : PBT UL94V-0

Color : Black

Current rating : 1A,AC,DC

Voltage rating : 130V AV,DC

Insulation resistance : 1000Ωmin

Contact Now

Double Row 2-30 PIN , 2.0mm Pitch , Wire to board Connector , Color Black

JVT offer a complete range of board to board and wire to board connectors including :pin

header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items.

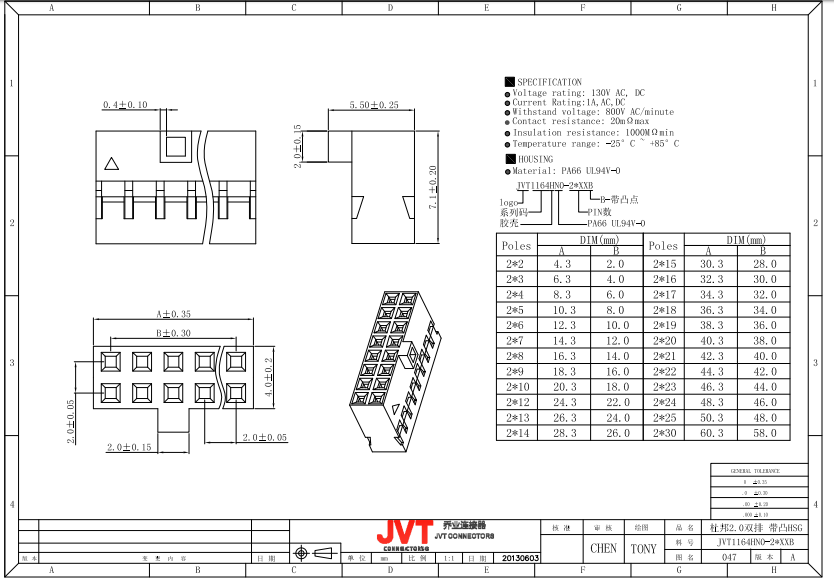

Drawing:

Double Row 2-30 PIin, Wire to board Connector , Housing and Terminal, Color in Black

Specification:

Temperature range	-25°C - +85°C
Contact Resistance	20mΩ
Insulation Resistance	1000MΩ
Poles	22-230
Voltage Rating	250V AC/DC
Current Rating	1A AC/DC
Withstanding voltage	800V AC/minute

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Samples:Free

Primary Competitive Advantages:

• Country of Origin

• Packaging

• Small Orders Accepted

• Quality Approvals

• Innovative Service

• Superiority of price

Equipment :

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines.

Double Row 2-30 PIin, Wire to board Connector , Housing and Terminal, Color in Black
