Double Row Wire to Board Connector 2.54mm , 22 Pin -240Pin Crimp Style Connector

Product Categories

Dongguan JVT Connectors Co., Ltd

Contact Now

Double Row Wire to Board Connector 2.54mm , 22 Pin -240Pin Crimp Style Connector

Brand Name : JVT

Model Number : JVT 1105

Certification : UL ,RoHS ,REACH

Place of Origin : China

MOQ : 1000

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 500000pcs per day

Delivery Time : 5-7 working days

Packaging Details : Tape&Reel

Category : Wire to Board Connector

Poles : 2*2-2*40

Pitch : 2.54mm

Color : Black

Type : Crimp Style Connector

Material : PBT UL94V-0

Contact Now

Double Row Wire to Board Connector,2.54mm,3Pin -17Pin,Crimp Style Connector

JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .

Specification:

Temperature range	-25°C - +85°C
Contact Resistance	20mΩ
Insulation Resistance	1000MΩ
Poles	22-240
Voltage Rating	250V AC/DC
Current Rating	3A AC/DC
Withstanding voltage	1000V AC/minute

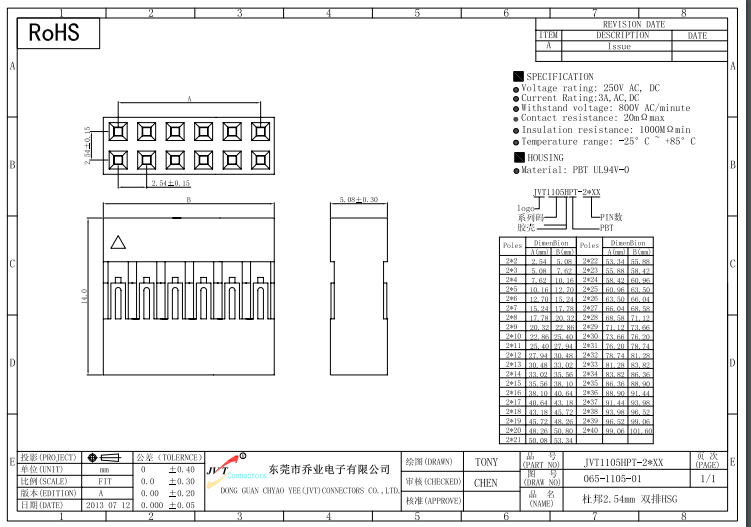

Drawings:

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Main Export Markets:

♦ Asia

♦ Australia

♦ Central/South America

♦ Mid East/Africa

♦ North America

Primary Competitive Advantages:

• Country of Origin

• Packaging

• Small Orders Accepted

• Quality Approvals

• Innovative Service

• Superiority of price
