PHB 2.0mm Pitch 16/26 Pin Pcb Connectors Wire To Board Dual Row Straight Angle

Dongguan JVT Connectors Co., Ltd
Contact Now

PHB 2.0mm Pitch 16/26 Pin Pcb Connectors Wire To Board Dual Row Straight Angle

  • 1
  • 2
  • 3

Brand Name : JVT

Model Number : JVT2041WNO

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 2000PCS

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 300000 per month

Packaging Details : PE bag packing +outer carton

Equivalent : JST - PHB

Pitch : 2.0mm

Type : DIP

Applicable Wire : AWG # 22-28

Contact Now

PHB 2.0mm Pitch 16/26 Pin Pcb Connectors Wire To Board Dual Row Straight Angle

JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .

Specification Standardized:

Pitch

2.0mm

Poles

16/26

Color

Beige Color

Rating Voltage

200V AC/DC

Rating Current

3A AC/DC

Withstand voltage

1000V AC/minute

Operating temperature

-40°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance 20MΩ Max.

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

Service

Country of Origin

Experienced Staff

Guarantee/Warranty

International Approvals

Price

Prompt Delivery

Quality Approvals

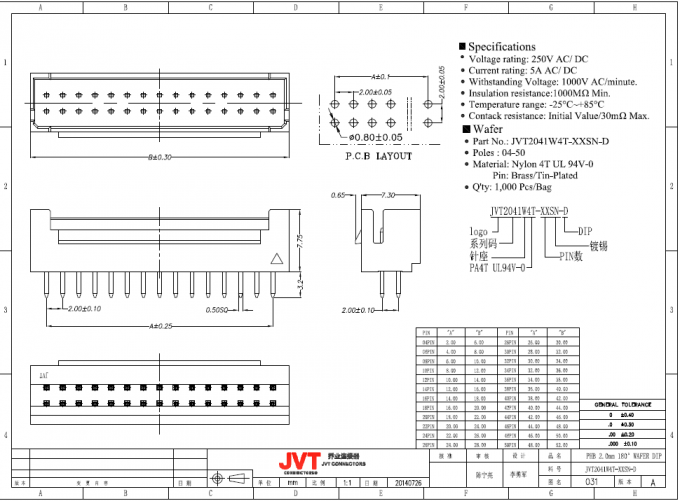

Technical Datasheet:

PHB 2.0mm Pitch 16/26 Pin Pcb Connectors Wire To Board Dual Row Straight Angle
