6 Pin PCB Board Connector , Right Angle Circuit Board Power Connectors Dip Type

Brand Name : JVT

Model Number : JVT1129

Certification : UL ,RoHS ,REACH

Place of Origin : China

MOQ : 1000PCS

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 500000pcs per day

Delivery Time : 5~7working days

Packaging Details : Tape&Reel

Category : PCB Board Connector

pitch : 2.0mm

Poles : 6

Color : White

Type : DIP

Application : PCB Board Connector

Contact Now

PHS 2.0mm Pitch, 6 pin PCB Board Connector , , right angle Dip Type Connector

JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items.

Specification :

Part no	JVT1129WNO-XXSNX-D
Poles	2-16
Pitch	2.0mm
Finish	Tin-plated
Current rating	3A AC/ DC
Voltage rating	250V AC,DC
Insulation resistance	1000MΩmin
Temperature range	-25°C~+85C°
Color	White
Package	1000pcs/bag

Payment Details :

Payment Terms :T/T or Western Union

Minimum Order :1000 Pieces

Samples :free

Competitive Advantages :

♦ Connectors manufacturer with over 15 years experience

♦ Complete Product range
♦ Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS
♦ Close to Shenzhen Port
♦ Punctual & Short lead time
♦ Good quality & Competitive Price

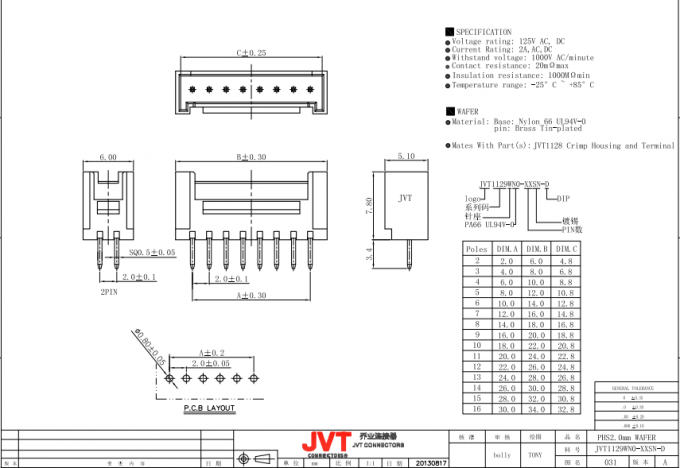

Drawing :

6 Pin PCB Board Connector , Right Angle Circuit Board Power Connectors Dip Type
