Pitch 1.25mm, PCB Board Connector ,2 Pin -16 Pin, Female Header Connector

Product Categories

Dongguan JVT Connectors Co., Ltd

Contact Now

Pitch 1.25mm, PCB Board Connector ,2 Pin -16 Pin, Female Header Connector

Brand Name : JVT

Model Number : JVT 1146

Certification : UL ,RoHS ,REACH

Place of Origin : China

MOQ : 2000

Price : Negotiation

Payment Terms : T/T

Supply Ability : 500000pcs per day

Delivery Time : 6-8days

Packaging Details : Tape&Reel

Pitch : 1.25mm

Poles : 2-16

Material : PA66 UL94V-0

Color : White

Voltage rating : 250V AC,DC

Current rating : 3A,AC,DC

Contact Now

Pitch 1.25mm, PCB Board Connector ,2 Pin -16 Pin, Female Header Connector

JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .

Specification:

Temperature range	-25°C - +85°C
Contact Resistance	20mΩ
Insulation Resistance	100MΩ
Poles	2-16
Voltage Rating	250V AC/DC
Current Rating	3A AC/DC
Withstanding voltage	250V AC/minute

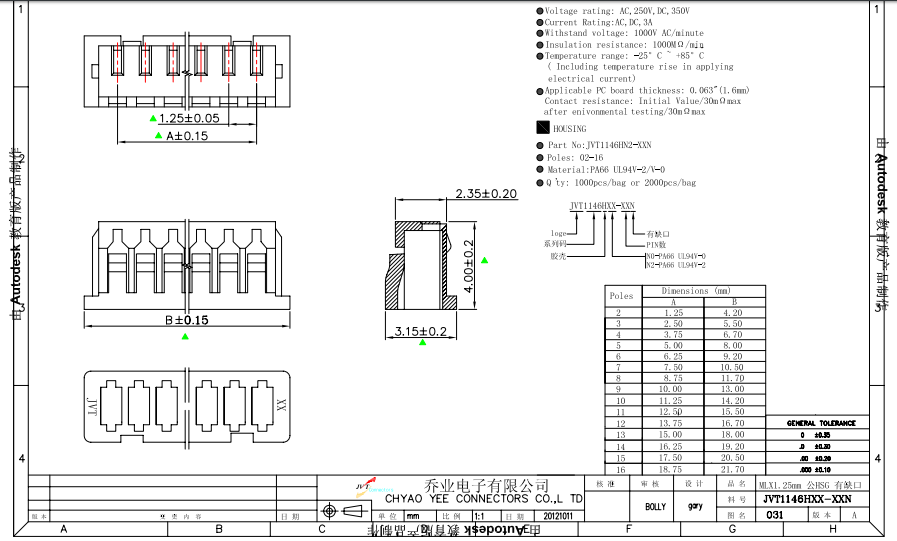

Drawing:

Pitch 1.25mm, PCB Board Connector ,2 Pin -16 Pin, Female Header Connector

Payment detials:

Payment item:T/T

Minimum Order Quantity:2000pcs

Primary Competitive Advantages:

Country of Origin

Packaging

Small Orders Accepted

Quality Approvals

Innovative Service

Superiority of price
