2.54mm Pitch PCB Wire To Board Connector Single Row Crimp Style With Black Color

Product Categories

Dongguan JVT Connectors Co., Ltd

Contact Now

2.54mm Pitch PCB Wire To Board Connector Single Row Crimp Style With Black Color

Brand Name : JVT

Model Number : JVT2513 Series

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 10000 PCS

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300000 per day

Delivery Time : 7-10 working days

Packaging Details : 1K/PE bag packing +outer carton

Pitch : 2.54mm

Color : Black

Rating Current : 3A AC/DC

No.of Circuits : 2-20

Equivalent : AMP MODU II

Plated Style : Tin-plated

Contact Now

2.54mm Pitch PCB Wire to Board Connector Single Row Crimp Style with Black Color

Friendly Link:

PCB SMT header connector.pdf

Cross Part number list.pdf

Specification Standardized:

Pitch	2.54mm
Poles	2-20
Material	Phosphor Bronze
Rating Voltage	250V AC/DC
Rating Current	3A AC/DC
Withstand voltage	1000V AC/minute
Operating temperature	-25°C to +85°C
Insulation resistance	1000MΩ Min
Contact resistance	20MΩ Max.

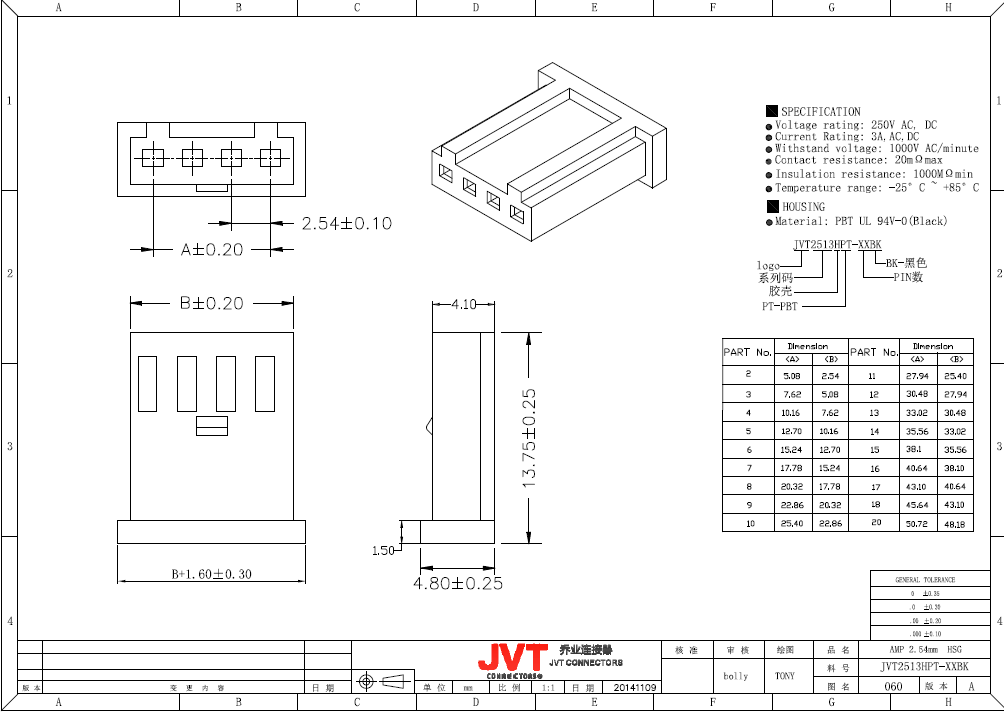

Drawing

2.54mm Pitch PCB Wire To Board Connector Single Row Crimp Style With Black Color
