UL 3.96mm pitch pcb board connector replaces staright header red electrical connectors

Dongguan JVT Connectors Co., Ltd
Contact Now

UL 3.96mm pitch pcb board connector replaces staright header red electrical connectors

  • 1
  • 2
  • 3

Brand Name : JVT

Model Number : JVT1120WNO-05SN-D

Certification : UL ,SGS

Place of Origin : China

MOQ : 1000 PCS

Price : Negotiation

Payment Terms : T/T or Western Union

Supply Ability : 300000 per month

Delivery Time : 7-10 working days

Packaging Details : PE bag packing +outer carton

Currant rating : 3A AC/DC

Country of origin : China

Pitch : 3.96mm

Color : Red

Application : PCB

Contact Now

UL 3.96mm pitch pcb board connector replaces staright header red electrical connectors

Material Specification:

Poles: 2 to 24

Pitch: 3.96mm

Current rating: 10A AC/DC

Voltage rating: 250V AC/DC

Temperature range: -25 to +85°C

Contact resistance: 10MΩ (maximum)

Insulation resistance: 1,000MΩ (minimum)

Withstanding voltage: 1,500V AC/minute

Materials: nylon 66 and UL94V-0

Color: red

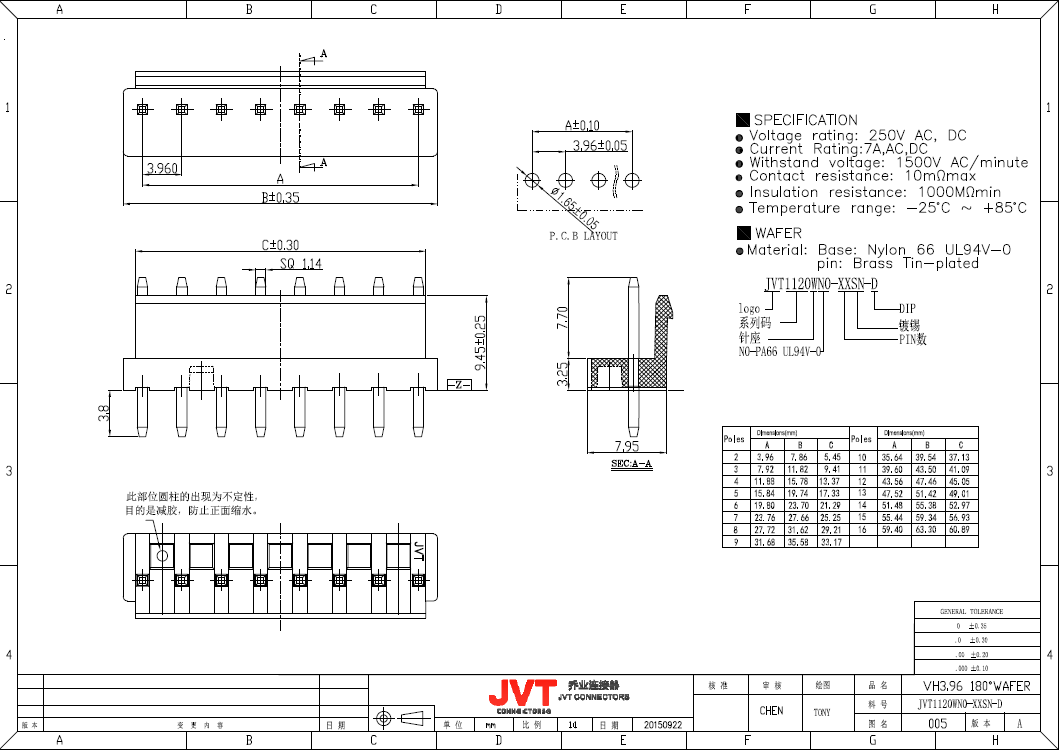

Drawing:

UL 3.96mm pitch pcb board connector replaces staright header red electrical connectors

Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
