2.0mm Pitch 4 - 40Pin PCB Board To Board Connectors Dip Type AWG#22-28

Product Categories

Dongguan JVT Connectors Co., Ltd

Contact Now

2.0mm Pitch 4 - 40Pin PCB Board To Board Connectors Dip Type AWG#22-28

Brand Name : JVT

Model Number : JVT2041

Certification : UL ,RoHS ,REACH

Place of Origin : China

MOQ : 1000

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 500000pcs per day

Delivery Time : 5-7working days

Packaging Details : Tape&Reel

Poles : 2*2-2*20

Pitch : 2.0mm

Material : Nylon 66 UL 94V-0

Finish : Tin-plated

Current rating : 5A AC/ DC

Voltage : 250V AC,DC

Contact Now

2.0mm Pitch,4-40Pin,Double PCB Board To Board Connectors,Dip Type Tin-plated,AWG#22-28

JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items.

Specification :

Material	Nylon 66UL94V-0
Voltage Rating	250V AC,DC
Current Rating	5A,AC,DC
Withstand Voltage	1000V AC/minute
Contact Resistance	10mΩmax
Insulation Resistance	1000mΩmin
Finish	Tin-plated
Package	1000pcs/bag
Samples	free

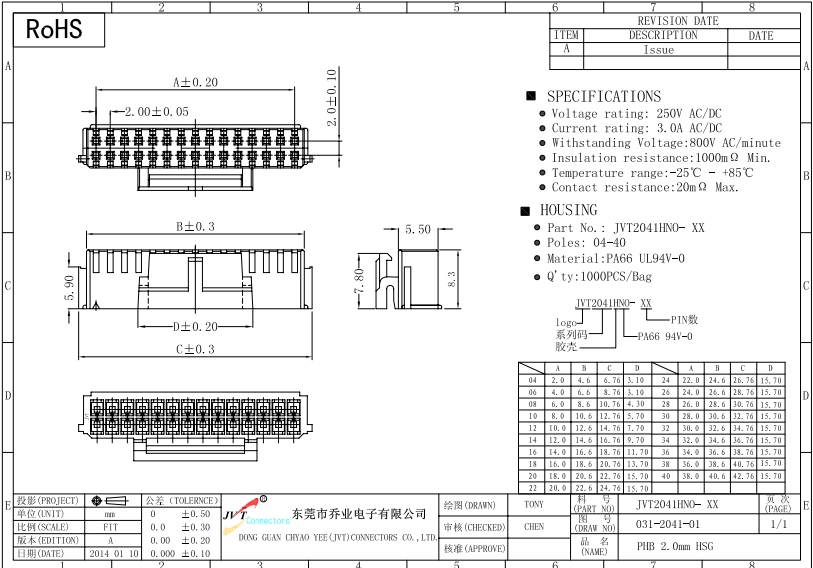

Drawing :

2.0mm Pitch 4 - 40Pin PCB Board To Board Connectors Dip Type AWG#22-28

Payment Details :

Payment Terms :T/T or Western Union

Minimum Order :1000 Pieces

Samples :free

Equipments:

2.0mm Pitch 4 - 40Pin PCB Board To Board Connectors Dip Type AWG#22-28

JVT company strengths :

♦ Quality Approvals

♦ Prompt Delivery

♦ International Approvals

♦ Guarantee/Warranty

♦ Competitive Price

♦ Friendly Service

♦ Experienced Staff

Main Export Markets :

♦ Asia

♦ Australia

♦ Central/South America

♦ Mid East/Africa/North America
