Single Row 2-20 PIN , 2.54mm Pitch , PCB Connectors Wire to Board

Brand Name : JVT

Model Number : JVT 1142

Certification : UL ,RoHS ,REACH

Place of Origin : China

MOQ : 2000

Price : Negotiation

Payment Terms : T/T

Supply Ability : 500000pcs per day

Delivery Time : 6-9 working days

Packaging Details : Tape&Reel

Row : Single

Poles : 2-20

Pitch : 2.54mm

Material : PA66/PBT UL94V-0

Color : Black

Current rating : 2.5A,AC,DC

Voltage rating : 130V AV,DC

Temperature range : -25°C -+85°C

Contact Now

Single Row 2-20 PIN , 2.54mm Pitch , PCB Connectors Wire to Board

JVT offer a complete range of board to board and wire to board connectors including :pin

header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive.

All are offered with small moq's ,the majority being stocked item.

Specification:

Category	PCB Connectors Wire to Board
Equivalent	Molex
Pitch	2.54mm
Poles	2-20
Color	Black
Voltage rating	250V AC/DC
Current rating	2.5A AC/DC
Withstand voltage	1000V AC/minute
Working temperature	-25°C to +85°C
Contact resistance	20MΩ Max
Insulation resistance	1000MΩ Min
Material	PBT UL94V-0
Sample	Free

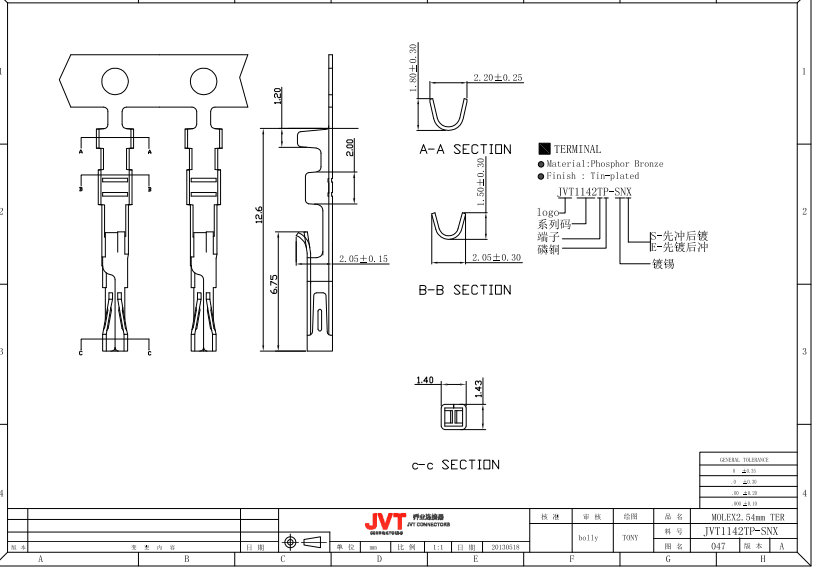

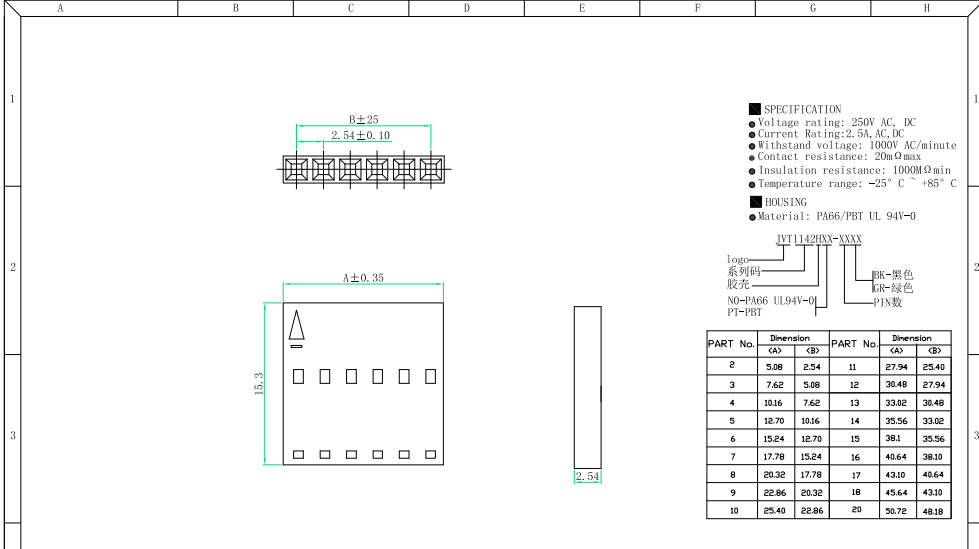

Drawing:

Single Row 2-20 PIN , 2.54mm Pitch , PCB Connectors Wire to Board

Payment Details:

Payment Terms:T/T

Minimum Order:1000 Pieces

Primary Competitive Advantages:

• Country of Origin

• Packaging

• Small Orders Accepted

• Quality Approvals

• Innovative Service

• Superiority of price

Equipment and Service :

♦ 10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

♦ prefessional and patient pre-service & after-service

♦ professsional sales team & engineering team & techinology team

♦ puntual delivery time and complete packaging process

♦ preferable price and best quality

Single Row 2-20 PIN , 2.54mm Pitch , PCB Connectors Wire to Board
