2.0mm Pitch 2-16Pin , PCB Board Connector Single Row , Nylon 66UL94V-0

Brand Name : JVT

Model Number : JVT 1129

Certification : UL ,RoHS ,REACH

Place of Origin : China

MOQ : 2000

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 500000pcs per day

Delivery Time : 5-7days

Packaging Details : Tape&Reel

Pitch : 2.0mm

Poles : 2-16

Color : White

Material : Nylon 66 UL 94V-0

Voltage rating : 250V AC,DC

Current rating : 3A,AC,DC

Contact resistance : 30mΩmax

Temperature range : -25°C-+85°C

Contact Now

2.0mm Pitch 2-16Pin , PCB Board Connector Single Row , Nylon 66UL94V-0

JVT offer a complete range of board to board and wire to board connectors including : pin header,mini jumpers,female header,PCB Multipole and housing a wide range of applications including :industrial,Medical and automotive.

All are offered with small moq's ,the majority being stocked items.

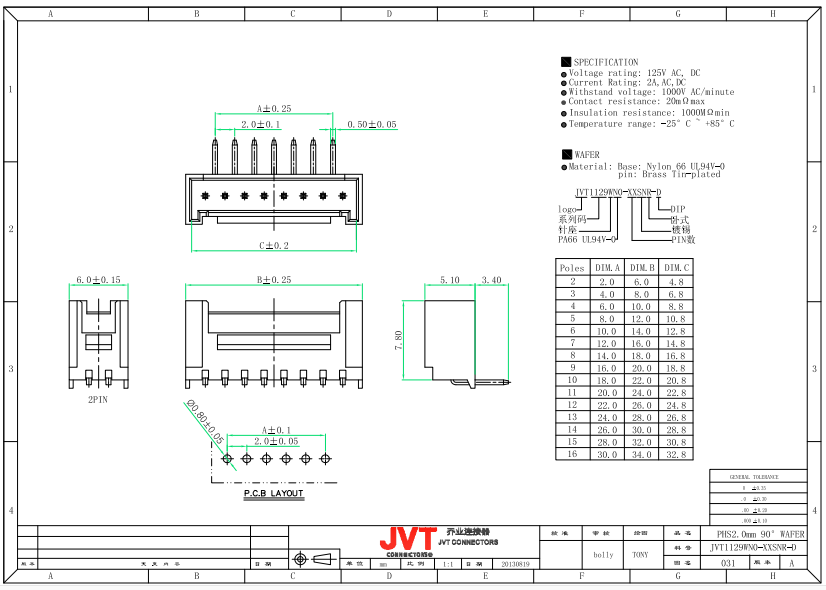

Drawing :

2.0mm Pitch 2-16Pin , PCB Board Connector Single Row , Nylon 66UL94V-0

Specification :

Temperature range	-25°C - +85°C
Contact Resistance	20mΩ
Insulation Resistance	1000MΩ
Poles	2-16
Voltage Rating	250V AC/DC
Current Rating	3A AC/DC
Withstanding voltage	1000V AC/minute

Transaction detials :

Payment item:T/T

MOQ:2000pcs

Service :

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality

Equipment :

2.0mm Pitch 2-16Pin , PCB Board Connector Single Row , Nylon 66UL94V-0

JVT competitive advantages :

JVT self-owned brand
Superiority of price
Shortest lead time
Innovative service
Excellent quality

Main Export Markets:

• Asia

• Australia

• Central/South America

• Mid East/Africa/North America
