Dual Row / Single Row DIP Pin Header PCB Electrical Pin Connectors Pitch 2.54mm

Product Categories

Dongguan JVT Connectors Co., Ltd

Contact Now

Dual Row / Single Row DIP Pin Header PCB Electrical Pin Connectors Pitch 2.54mm

Brand Name : JVT

Model Number : JVT2547H25-XX / 2*XX-U65D30

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 5000 PCS

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300000 per day

Delivery Time : 7-10 working days

Packaging Details : PE bag packing +outer carton

Pitch : 2.54mm

No.of pins : 2*1-2*40

Type of Row : Dual Row

Color : Black

Plating : Gold Flash

Standard : PBT

Contact Now

Pitch 2.54mm Dual Row DIP Pin Header PCB Board Connector with PBT Material

Friendly Link:

Cross Part number list.pdf

Specification Standardized:

Pitch	2.54mm
Pins	21-240
Applicable wire	#28-32
Rating Voltage	500V AC/DC
Rating Current	3A AC/DC
Withstand voltage	1000V AC/minute
Operating temperature	-40°C to +85°C
Insulation resistance	1000MΩ Min
Contact resistance	20MΩ Max.

Material Specification :

Housing: PBT,UL94V-0

PIN: Brass,Gold plated

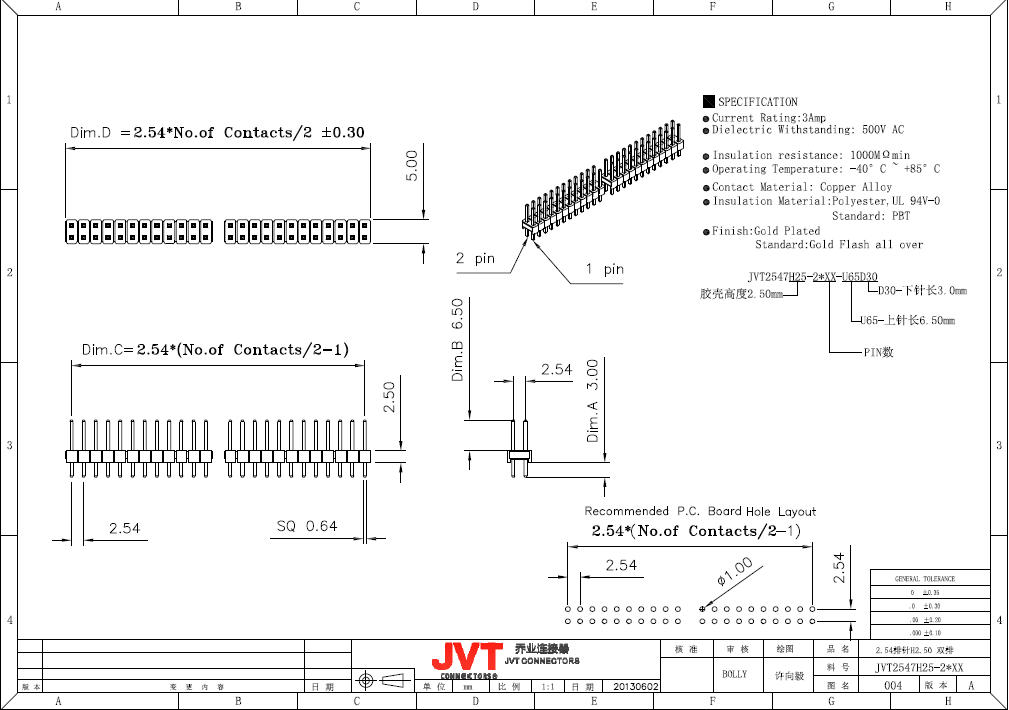

Drawing:

Dual Row / Single Row DIP Pin Header PCB Electrical Pin Connectors Pitch 2.54mm
