5 Pole 2.5mm Pitch PCB Connectors Wire To Board DIP Vertical Type Wafer Connector

Product Categories

Dongguan JVT Connectors Co., Ltd

Contact Now

5 Pole 2.5mm Pitch PCB Connectors Wire To Board DIP Vertical Type Wafer Connector

Brand Name : JVT

Model Number : JVT2501

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 10000 PCS

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300000 per day

Delivery Time : 7-10 working days

Packaging Details : PE bag packing +outer carton

Series : XHB connector

pitch : 2.5mm

rating current : 3A AC / DC

contact material : brass

contact resistance : 20MΩ Min

Contact Now

Pitch of 2.5mm 5 Pin PCB Wire to Board DIP Vertical Type Wafer Connector

Friendly Link:

Cross Part number list.pdf

Specification Standardized:

Pitch: 2.5mm

Poles: 2-12

Applicable wire: AWG#22-28

Voltage rating: 250V AC/DC

Current rating: 3A AC/DC

Withstand voltage: 1000V AC/minute

Working temperature: -25°C to +85°C

Insulation resistance: 1000MΩ Min

Contact resistance: 20MΩ Max.

Material Specification :

Terminal: Phosphor Bronze or Brass ,Tin plated

Housing: Nylon 66 UL94V-0

Wafer: Nylon 66 UL94V-0

PIN: Brass ,Tin plated

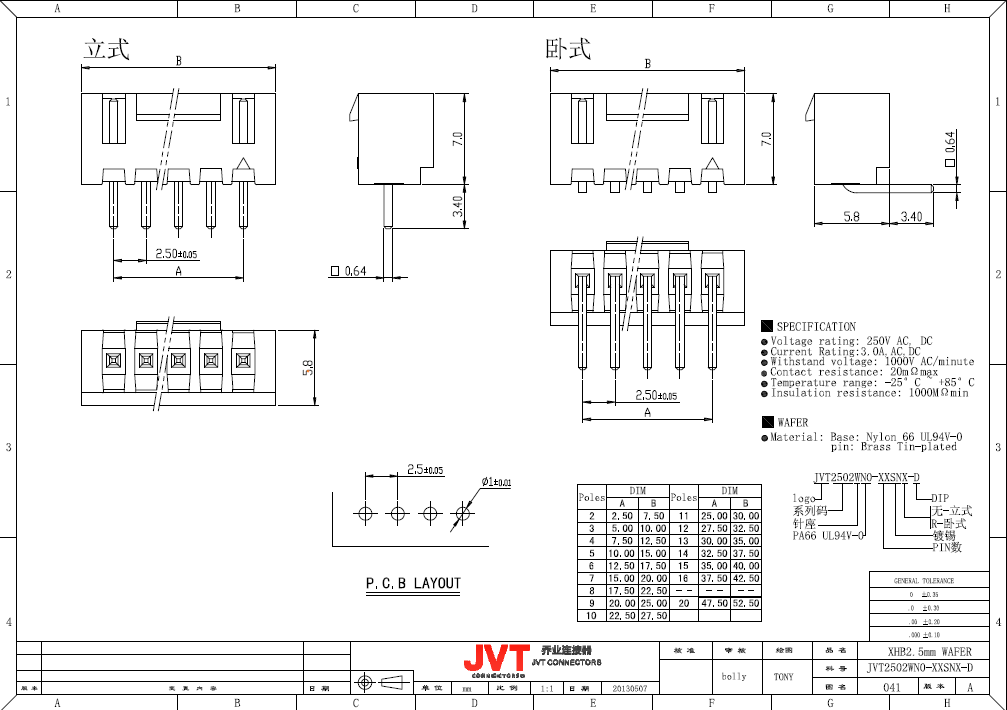

Drawing

5 Pole 2.5mm Pitch PCB Connectors Wire To Board DIP Vertical Type Wafer Connector

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Our advantage

Favorable unit price

Strict quality control

Shortest lead time

Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)

Accelerated equipments:10 automated injection molding

20 automated pin - setting

6 high precision stamping machines
