Vertical Type Wafer Tin Plated Wire to Board Connector 2.5mm Pitch 3 Pin DIP

Dongguan JVT Connectors Co., Ltd
Contact Now

Vertical Type Wafer Tin Plated Wire to Board Connector 2.5mm Pitch 3 Pin DIP

  • 1
  • 2

Brand Name : JVT

Model Number : JVT1001WN0-03SN-D

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 1000 PCS

Price : Negotiation

Payment Terms : T/T or Western Union

Supply Ability : 300000 per week

Delivery Time : 7-10 working days

Packaging Details : PE bag packing +outer carton

Category : Wire to Board Connector

Application : PCB Board

Orientation : Vertical Type

Number of PIns : 3

Plating : Tin plated

Equivalent : JST-XH

Number of Circuits : 2-20

Current Rating : 3A

Contact Now

2.5mm Pitch 3 Pin DIP Vertical Type Wafer Tin Plated Wire to Board Connector

Friendly Link:

Cross Part number list.pdf

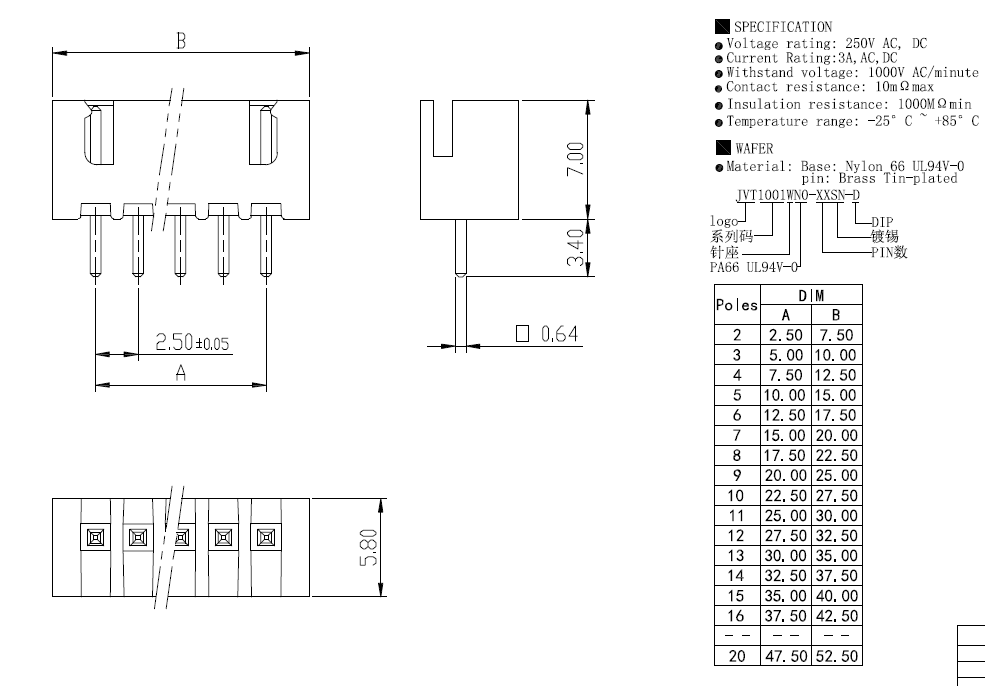

Technical Datasheet:

Vertical Type Wafer Tin Plated Wire to Board Connector 2.5mm Pitch 3 Pin DIP

Competitive Advantages:

We are connectors manufacturer with over 15 years experience.

1. Complete Product range.

2. Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS.

3. Close to Shenzhen Port.

4. Punctual & Short lead time.

5. Good quality & Competitive Price.

Application:

Car audio Household appliances
Photocopier GPS
Fax machine The set-top box
Printer Control panel

Payment Details:

Payment Terms:T/T in advance

Minimum Order:1000 Pieces

Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America


Product Tags:

wire to board power connector



circuit board pin connectors


China Vertical Type Wafer Tin Plated Wire to Board Connector 2.5mm Pitch 3 Pin DIP wholesale
