Brass 2.54mm Pitch SMT Female Header Connector With Cap Dual Row Reeled

Product Categories

Dongguan JVT Connectors Co., Ltd

Contact Now

Brass 2.54mm Pitch SMT Female Header Connector With Cap Dual Row Reeled

Brand Name : JVT

Model Number : JVT2546H506T-2x20C-S

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 5000 PCS

Price : Negotiation

Payment Terms : T/T or Western Union

Supply Ability : 300000 per day

Delivery Time : 7-10 working week

Packaging Details : Reel packing +outer carton

Color : black

pitch : 2.54mm

contact material : brass

nsulator Material : Polyester(UL94V-0)

Contact Resistance : 30MΩ Max

Type : SMT with Cap on Top

Contact Now

2.54mm Pitch SMT Female Haeder Connector with Cap Dual Row Reeled for SMT-Pic&Place machines

Friendly Link:

Cross Part number list.pdf

PCB SMT header connector.pdf

Specification Standardized:

Scale	2.54mm
Cables	2-50
Applicable wire	AWG#22-28
Rating Voltage	500V AC/DC
Rating Current	2A AC/DC
Voltage Withstand	500V AC/minute
Operating temperature	-40°C to +85°C
Insulation resistance	1000MΩ Min
Contact resistance	20MΩ Max.

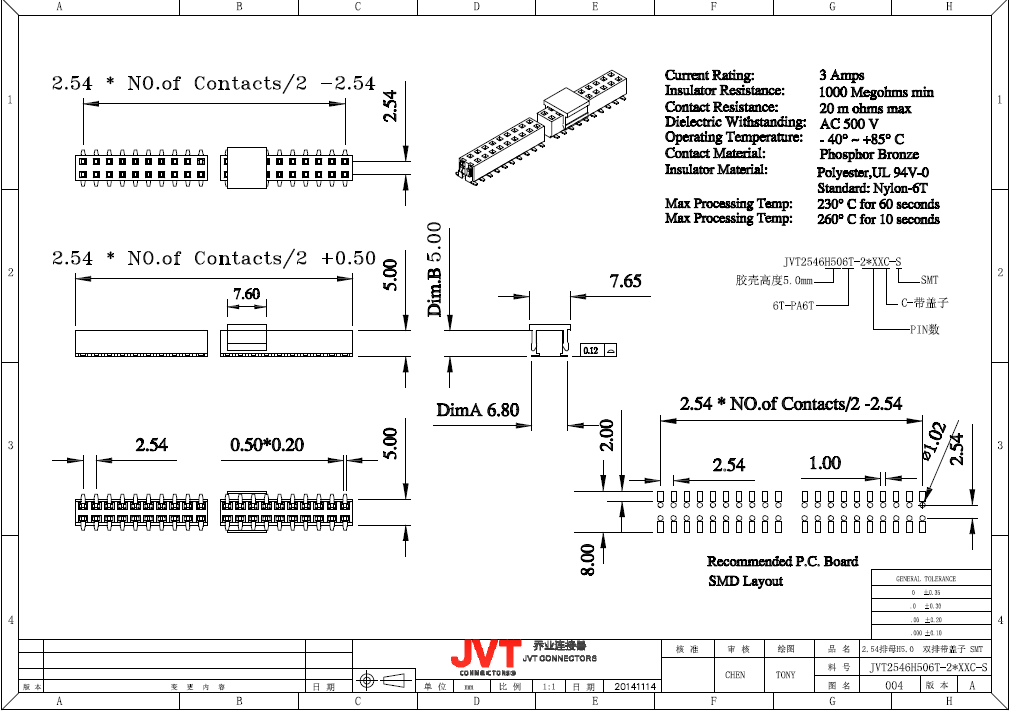

Technical Datasheet:

Brass 2.54mm Pitch SMT Female Header Connector With Cap Dual Row Reeled

Material Specification :

Housing: PA6T ,UL 94V-0

PIN: Brass ,Gold plated

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

Service
Country of Origin
Experienced Staff
Guarantee/Warranty
International Approvals
Price
Prompt Delivery
Quality Approvals

Main Export Markets:

Asia
Australia
Central/South America
Mid East/Africa
North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
