PAD 2.0mm Straight Header PCB Board Connector DIP 10 Pin Dual Row Tin Plated

Dongguan JVT Connectors Co., Ltd
Contact Now

PAD 2.0mm Straight Header PCB Board Connector DIP 10 Pin Dual Row Tin Plated

Brand Name : JVT

Model Number : JVT2038WNO-10SNWHR-D

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 1000 PCS

Price : Negotiation

Payment Terms : T/T or Western Union

Supply Ability : 300000 per day

Delivery Time : 7-10 working days

Packaging Details : PE bag packing +outer carton

Category : PCB Board header connector

Angle : straight

Type : DIP

Number of Pins : 10

Contact Now

PAD 2.0mm Straight header connector , DIP 10 Pins PCB board Connectors ,daul row

Friendly Link:

Cross Part number list.pdf

Material Specification:

Terminal: Phosphor Bronze or Brass ,Tin plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 UL94V-0

PIN: Brass ,Tin plated

Standard Specification:

Pitch

2.0mm

Pol4es

2*2-2*16

Applicable wire

AWG#18-22

Voltage rating

250V AC/DC

Current rating

3A AC/DC

Withstand voltage

800V AC/minute

Working temperature

-25°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max

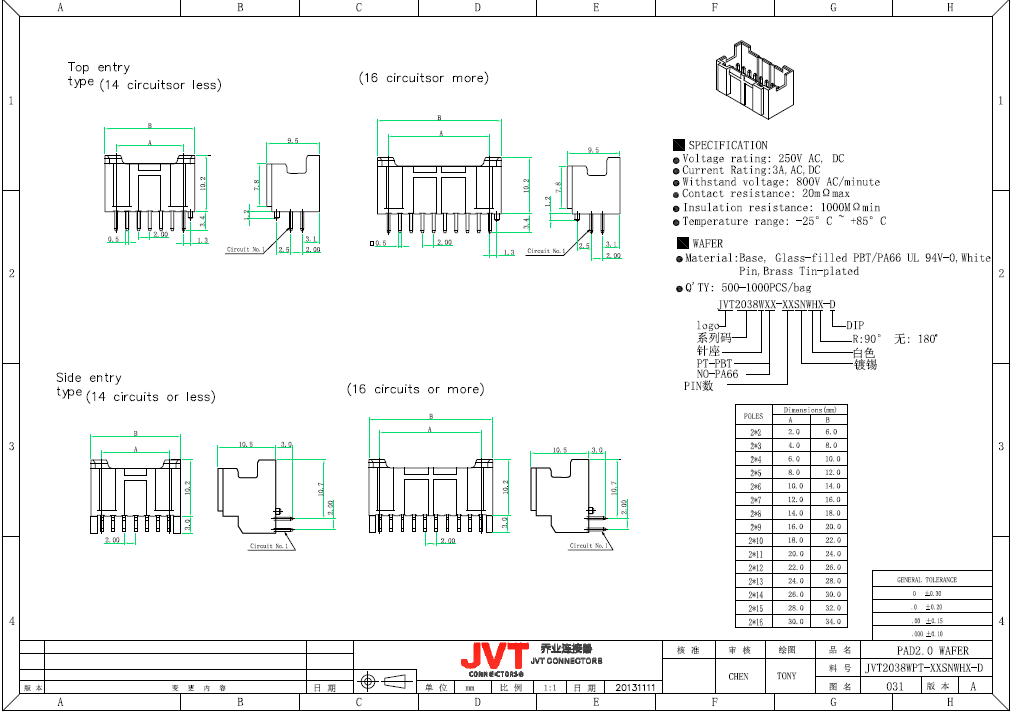

Drawing

PAD 2.0mm Straight Header PCB Board Connector DIP 10 Pin Dual Row Tin Plated
