Equivalent Of Wago 1 Pole SMD LED Quick Connector 4.0mm Pitch PA46 UL94V-0 Housing

Product Categories

Dongguan JVT Connectors Co., Ltd

Contact Now

Brand Name : JVT

Model Number : JVT4002W46-01SN-S

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 800/1000/1500 PCS/reel

Price : Negotiation

Payment Terms : T/T or Western Union

Supply Ability : 300000 per month

Delivery Time : 7-10 working days

Packaging Details : PE bag packing +outer carton

Pitch : 4.0mm

No.of Contacts : 1

Rating Current : 9A, AC,DC

type : SMD Led connector ,terminal block

Packing : 800pcs/Reel

Equivalent : Wago

Contact Now

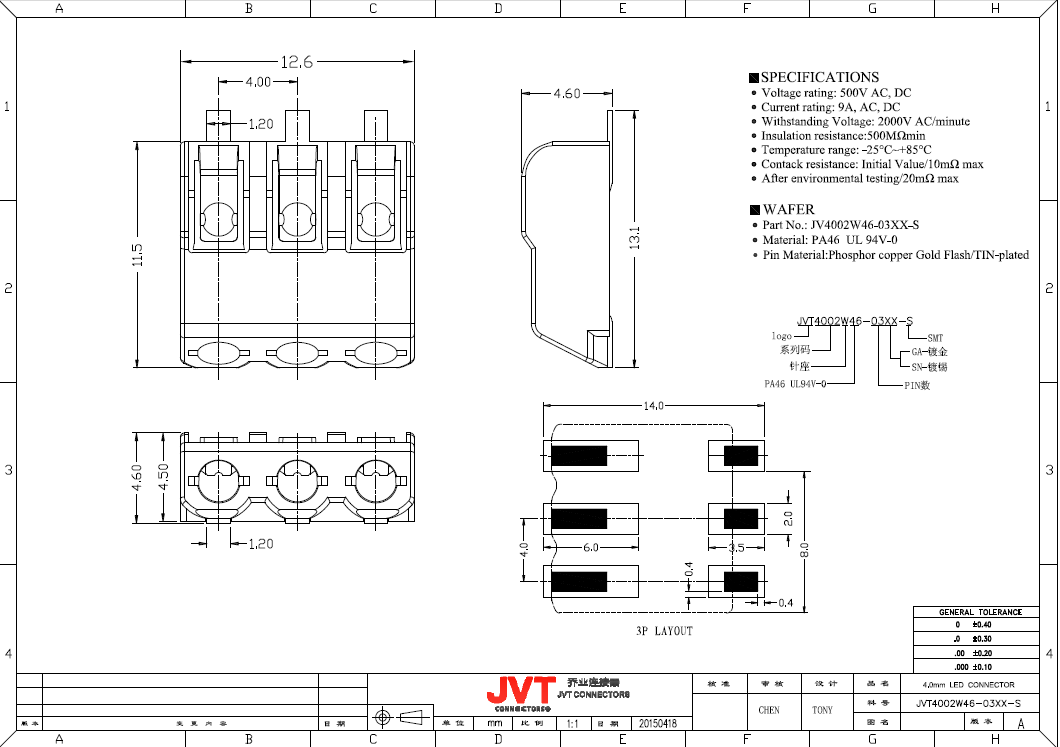

Equivalent of Wago, 3 Pole SMD LED Connector 4.0mm Pitch with PA46 UL94V-0 Housing

Specification Standardized:

Pitch	4.0mm
Pins	3
Pin Material	Phospher copper Gold Flash/Tin-plated
Rating Voltage	500V AC/DC
Rating Current	9A AC/DC
Withstand voltage	2000V AC/minute
Operating temperature	-25°C to +85°C
Insulation resistance	500MΩ Min
Contact resistance	20MΩ Max.

Technical Datasheet:

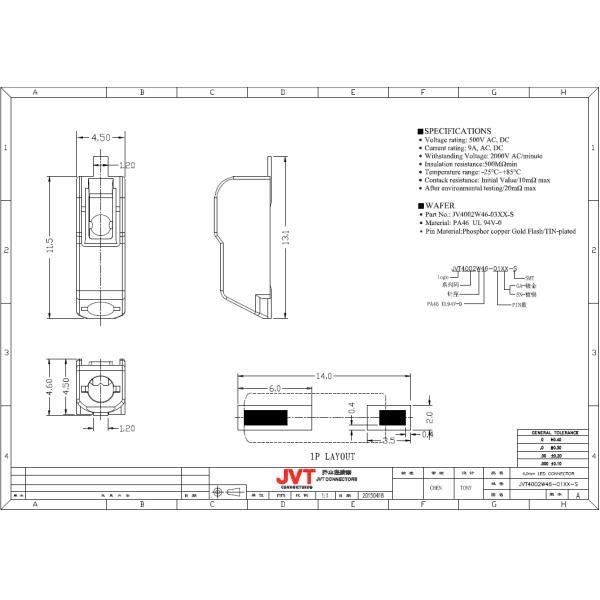

Equivalent Of Wago 1 Pole SMD LED Quick Connector 4.0mm Pitch PA46 UL94V-0 Housing

Payment Details:

Payment Terms:T/T or Western Union

MOQ:1000 Pieces/Reel

We are connectors manufacturer with over 15 years experience.

1. Complete Product range.

2. Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS.

3. Close to Shenzhen Port.

4. Punctual & Short lead time.

5. Good quality & Competitive Price.
