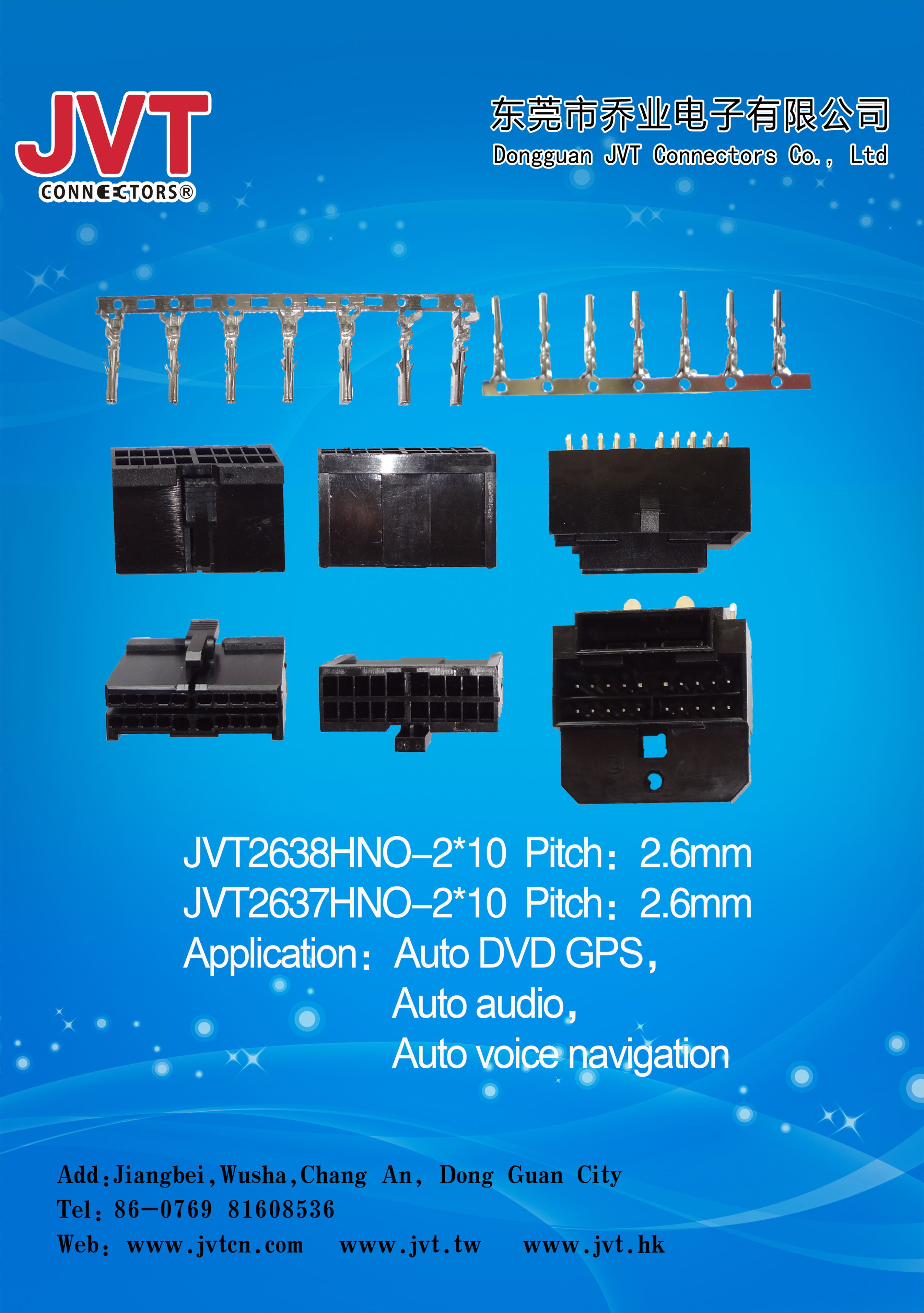

2.6mm Pith 20 Pin Wire to Wire Plastic Automotive Connectors Tin - plated

Brand Name : JVT

Model Number : JVT 2368HNO-20

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 1000 PCS

Price : Negotiation

Payment Terms : T/T or Western Union

Supply Ability : 300000 per month

Delivery Time : 7-10 working days

Packaging Details : PE bag packing +outer carton

material : Nylon 66

pitch : 2.6mm

Application : Automotive DVD and GPS

Gender : Receptacle

Contact Now

2.6mm Pith 20 Pin Wire to Wire Auto Plastic Connector with High Quality

Specifications :

Terminal: Brass , Tin-plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 ,Tin plated

Pitch: 2.6mm

Poles:20

Applicable wire: AWG#18-22

Voltage rating: 250V AC/DC

Current rating: 5A AC/DC

Withstand voltage: 1500V AC/minute

Working temperature: -40°C to +105°C

Insulation resistance: 1000MΩ Min

Contact resistance: 20MΩ Max.

2.6mm Pith 20 Pin Wire to Wire Plastic Automotive Connectors Tin - plated
