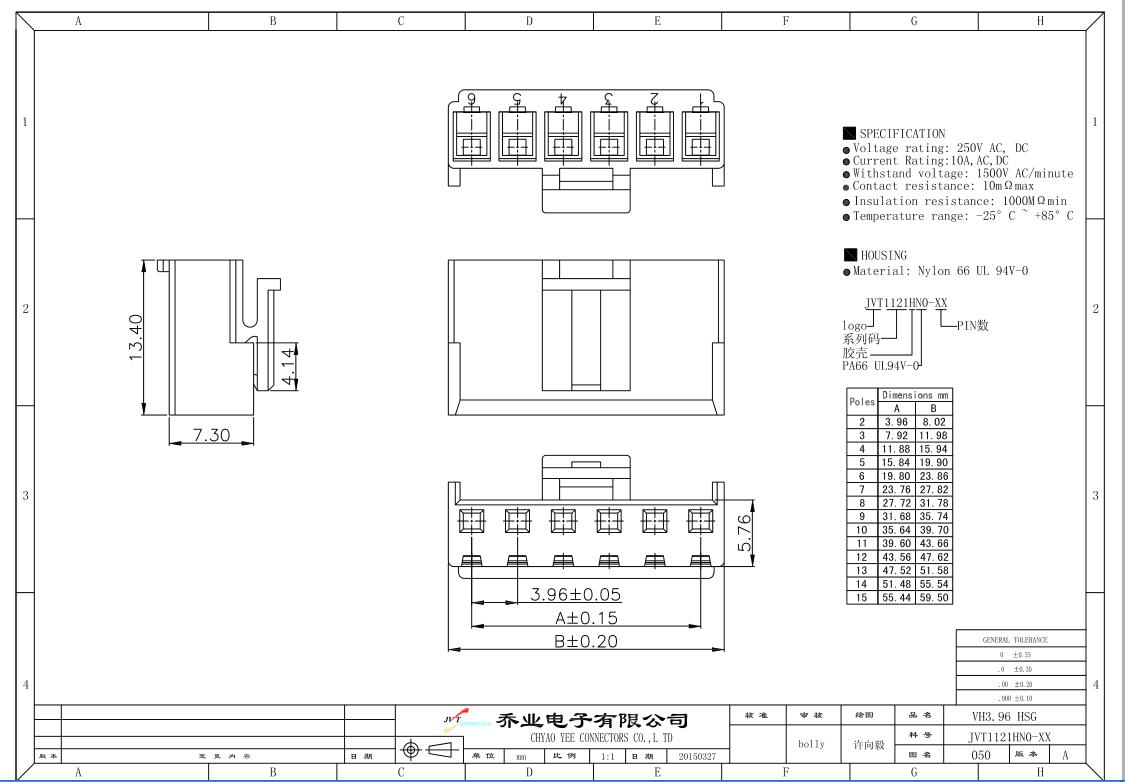

1.3.96mm JST VH connector housing Wire to Board pcb Connector 2pin Red color,Nylon66 UL94V-0
2. JVT supply JST cross part VHR-2 ,2pin housing connector ,PA66 UL94V-0 ,wire to board connector type
Datasheet (PDF) & Other Documents Download center:
1.JVT1121HN0-XX.pdf
2.JVT1121TP-XXX.pdf
Specification Standardized:
| contact space | 3.96mm |
| poles | 2-16 |
| Applicable wire | AWG#28 - 32 |
| Rating Voltage | 1000V AC/DC |
| Rating Current | 1A AC/DC |
| Voltage Withstand | 50V AC/minute |
| Operating temperature | -25°C to +85°C |
| Insulation resistance | 500MΩ Min |
| Contact resistance | 20MΩ Max. |
Material Specification :
| Terminal: | Phosphor Bronze ,Gold plated |
| Housing: | Nylon66 UL94V-0 |
| Wafer: | Nylon 6T UL94V-0 |
| PIN: | Brass,Gold plated |
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
Primary Competitive Advantages:
Service
Country of Origin
Experienced Staff
Guarantee/Warranty
International Approvals
Price
Prompt Delivery
Quality Approvals
JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .
All are offered with small moq's ,the majority being stocked items .
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
Primary Competitive Advantages:
- Service
- Country of Origin
- Experienced Staff
- Guarantee/Warranty
- International Approvals
- Price
- Prompt Delivery
- Quality Approvals
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
Product Tags:
|
|
3.96mm JST VH connector housing Wire to Board pcb Connector 2pin Red color,Nylon66 UL94V-0 Images
|
