JVT PHB 2.0mm Series Dual Row Circuit PCB connector Wire to board ,Part number : JVT2041

Product Categories

Dongguan JVT Connectors Co., Ltd

Contact Now

JVT PHB 2.0mm Series Dual Row Circuit PCB connector Wire to board ,Part number : JVT2041

Brand Name : JVT

Model Number : JVT2041

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 1000 PCS

Price : Negotiation

Payment Terms : T/T or Western Union

Supply Ability : 300000 per month

Delivery Time : 7-10 working days

Packaging Details : PE bag packing +outer carton

pitch : 2.0mm

type : wire to board connector

Gender : Male

color : white

Material - Metal : Phosphor Bronze

Packaging Type : bag

Contact Now

JVT PHB 2.0mm series dual row housing /header/terminal , wire to board connector type ,JVT2041

Datasheet (PDF) & Other Documents Download center:

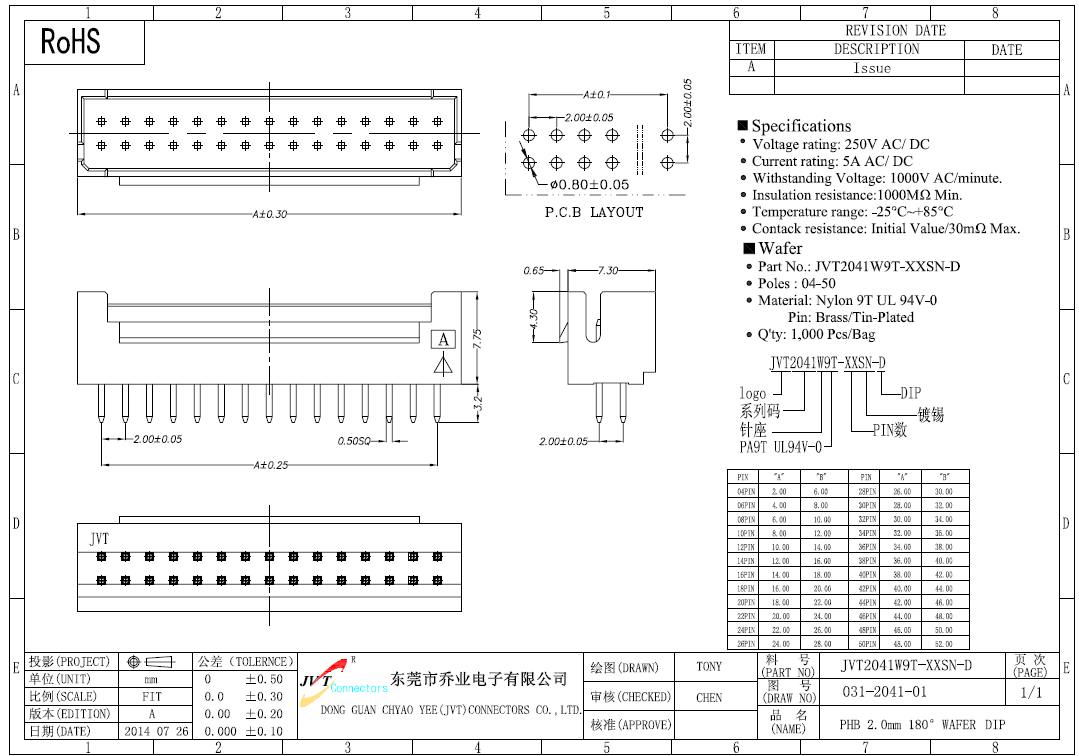

1.JVT2041W9T-XXSN-D .pdf

2.JVT2041HNO-XX(QY) Model (1).pdf

Specification

Pitch	2.0 mm
Current rating	3A (AWG#22)
Voltage rating	250V
PC board mounting direction	Top entry, Side entry

JVT PHB 2.0mm Series Dual Row Circuit PCB connector Wire to board ,Part number : JVT2041

Material Specification:

Terminal: Phosphor Bronze ,Tin plated /gold plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 UL94V-0

PIN: Brass,Gold plated/Tin plated

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

Service
Country of Origin
Experienced Staff
Guarantee/Warranty
International Approvals
Price
Prompt Delivery
Quality Approvals

Main Export Markets:

Asia
Australia
Central/South America
Mid East/Africa
North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
