7A AC/DC Wire to Wire Power Cable Connectors with Tin Plated Brass Terminal Connectors

Product Categories

Dongguan JVT Connectors Co., Ltd

Contact Now

7A AC/DC Wire to Wire Power Cable Connectors with Tin Plated Brass Terminal Connectors

Brand Name : JVT

Model Number : JVT5011

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 1000 PCS

Price : Negotiation

Payment Terms : T/T or Western Union

Supply Ability : 300000 per month

Delivery Time : 7-10 working days

Packaging Details : PE bag packing +outer carton

color : white

pitch : 5.0mm

current rating : 7A AC / DC

contact material : brass

Contact Now

7A AC/DC Wire to Wire Power Cable Connectors with Tin Plated Brass Terminal Connectors

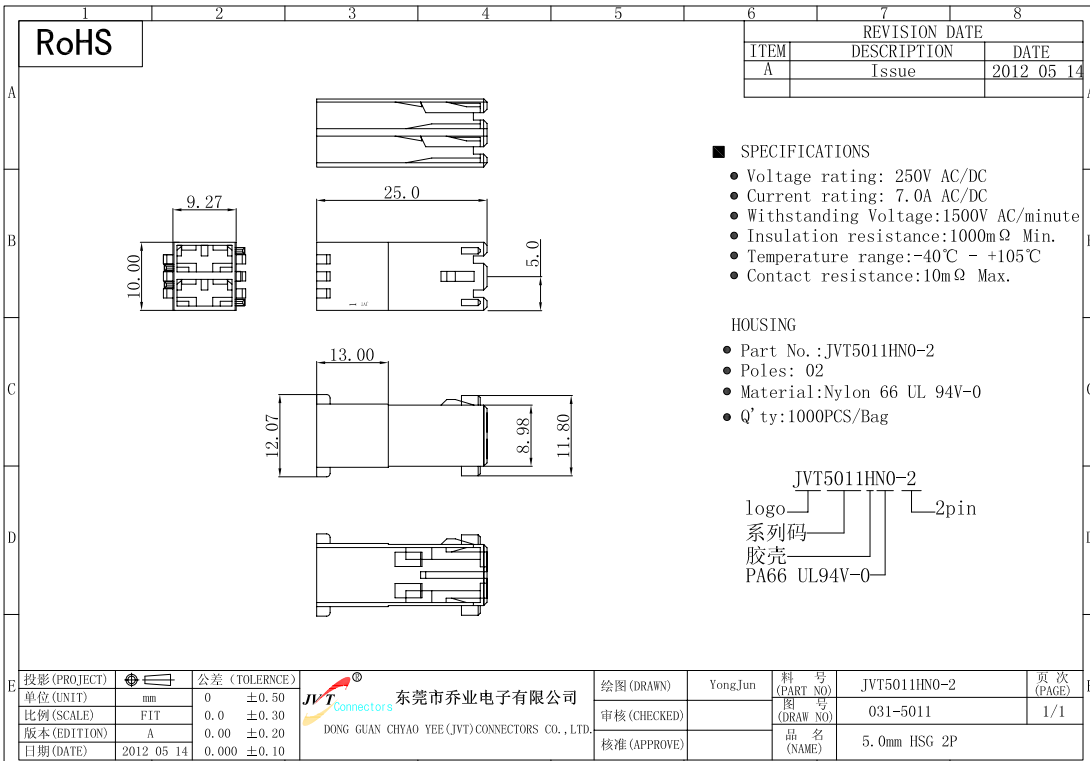

JVT 5.0mm Wire to Wire Power Connector ,Nylon 66 UL 94V -0,use for power cable

Specification Standardized:

Pitch: 5.0mm

Poles: 2,6

Applicable wire:AWG 18-22

Voltage rating: 250V AC/DC

Current rating: 7A AC/DC

Withstand voltage: 1500V AC/minute

Working temperature: -40°C to +105°C

Insulation resistance: 1000MΩ Min

Contact resistance: 10MΩ Max.

7A AC/DC Wire to Wire Power Cable Connectors with Tin Plated Brass Terminal Connectors

Material Specification :

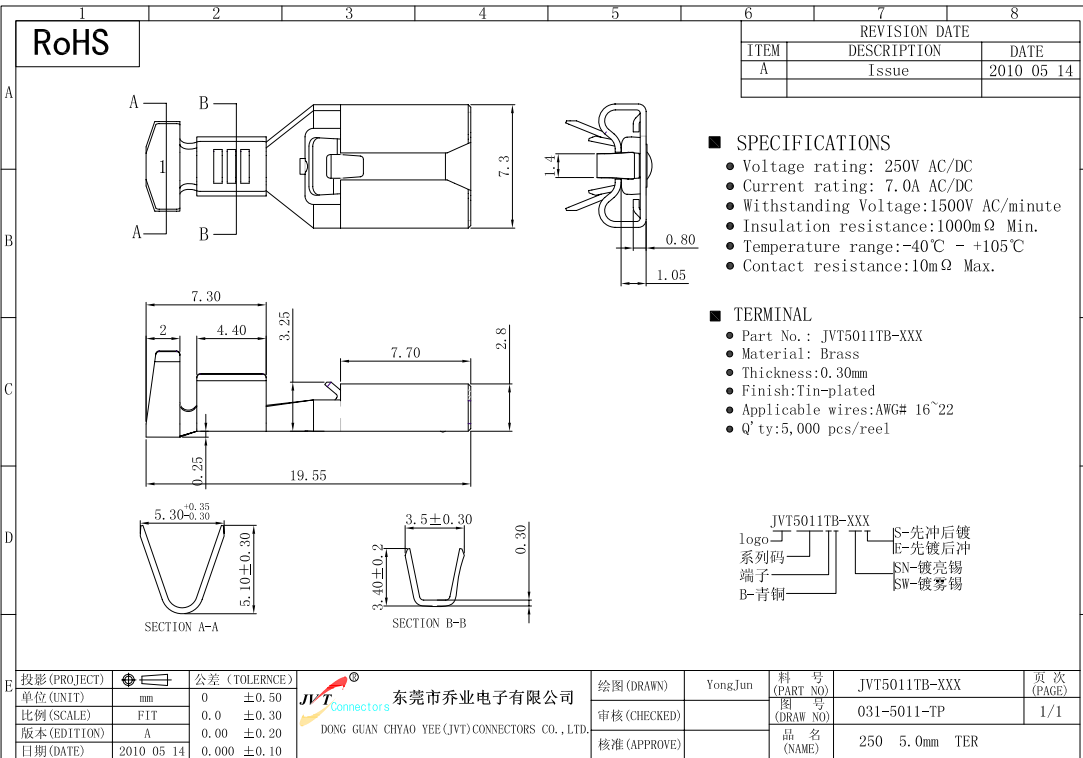

Terminal: Brass , Tin-plated

Housing: Nylon66,UL94V-0

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

Service
Country of Origin
Experienced Staff
Guarantee/Warranty
International Approvals
Price
Prompt Delivery
Quality Approvals

Main Export Markets:

Asia
Australia
Central/South America
Mid East/Africa
North America

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
