Pitch NH 1.0mm Wire to Board LED Connector for AWG 28 - 32 Applicable Wire

Brand Name : JVT

Model Number : JVT1403

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 1000 PCS

Price : Negotiation

Payment Terms : T/T or Western Union

Supply Ability : 300000 per month

Delivery Time : 7-10 working days

Packaging Details : PE bag packing +outer carton

applicable wire : AWG 28-32

pitch : 1.0mm

series : NH

poles : 2 - 20

Contact Now

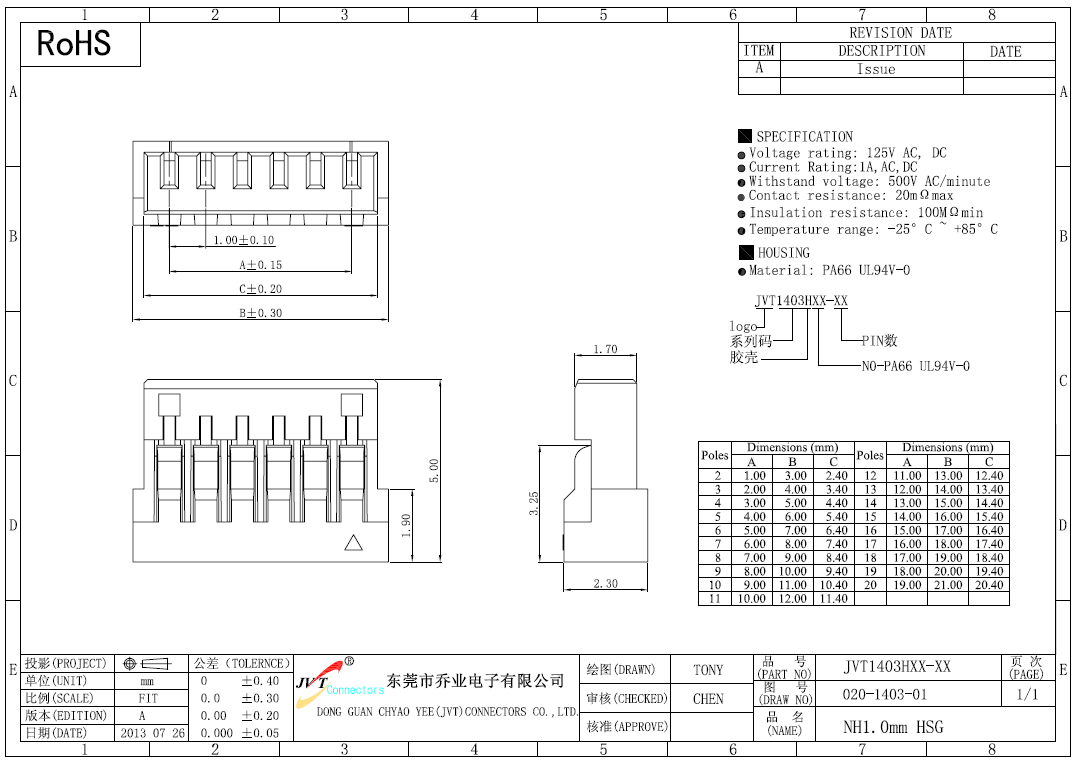

Pitch NH 1.0mm Wire to Board LED Connector for AWG 28 - 32 Applicable Wire

Material Specification :

Terminal: Phosphor Bronze ,Tin/Gold plated

Housing: Nylon66/PBT UL94V-0

Pitch NH 1.0mm Wire to Board LED Connector for AWG 28 - 32 Applicable Wire

Standardized Specification:

Pitch: 1.0mm

Poles: 2-20

Applicable wire: AWG#28-32

Voltage rating: 125V AC/DC

Current rating: 1A AC/DC

Withstand voltage: 500V AC/minute

Working temperature: -25°C to +85°C

Insulation resistance: 1000MΩ Min

Contact resistance: 20MΩ Max.
