Right Angle DIP 20 Pin PCB Stacking Connectors For AWG#18-22 Applicable Wire

Brand Name : JVT

Model Number : JVT2038WNO-20SNWHR-D

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 1000 PCS

Price : Negotiation

Payment Terms : T/T or Western Union

Supply Ability : 300000 per month

Delivery Time : 7-10 working days

Packaging Details : PE bag packing +outer carton

Category : PCB Board Wafer

Angle : Right Angle

Type : DIP

Number of Pins : 20

Contact Now

Right Angle DIP 20 Pins PCB Stacking Connectors for AWG#18-22 Applicable Wire

Material Specification:

Terminal: Phosphor Bronze or Brass ,Tin plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 UL94V-0

PIN: Brass ,Tin plated

JVT 2.0mm Pitch Wafer for PCB Board Electrical Connectors With Right Angle

Standard Specification:

Pitch	2.0mm
Pol4es	22-216
Applicable wire	AWG#18-22
Voltage rating	250V AC/DC
Current rating	5A AC/DC
Withstand voltage	800V AC/minute
Working temperature	-25°C to +85°C
Insulation resistance	1000MΩ Min
Contact resistance	20MΩ Max

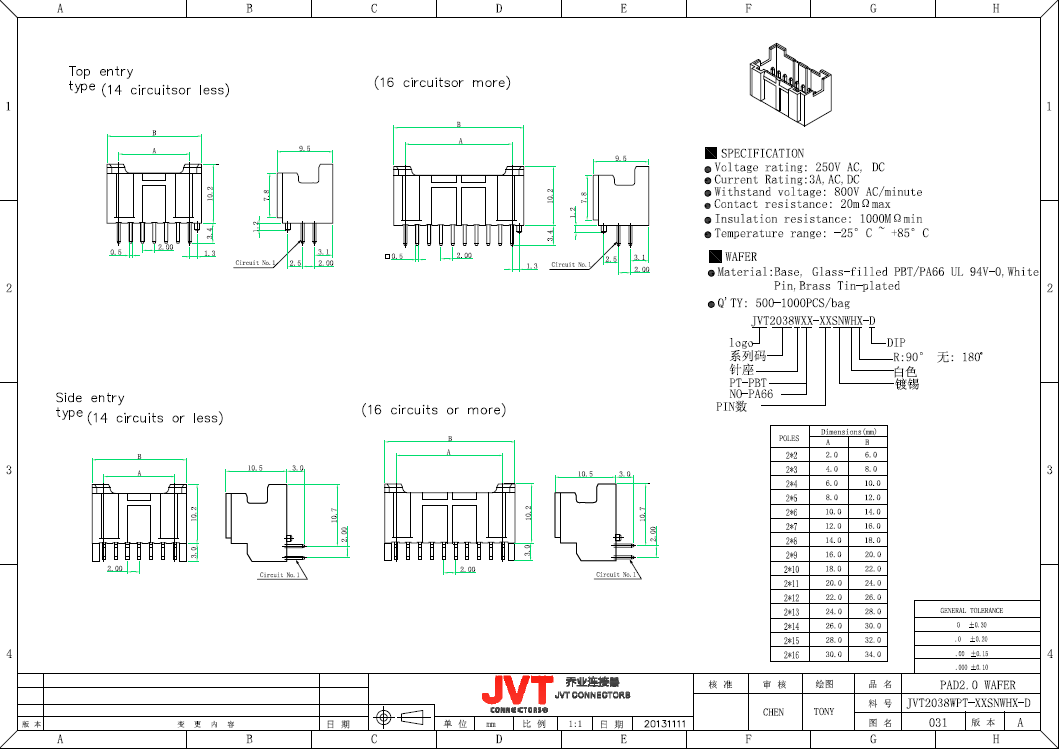

Drawing

Right Angle DIP 20 Pin PCB Stacking Connectors For AWG#18-22 Applicable Wire

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

Service
Country of Origin
Experienced Staff
Guarantee/Warranty
International Approvals
Price
Prompt Delivery
Quality Approvals

Main Export Markets:

Asia
Australia
Central/South America
Mid East/Africa
North America

Our advantage

Favorable unit price

Strict quality control

Shortest lead time

Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)

Accelerated equipments:10 automated injection molding

20 automated pin - setting

6 high precision stamping machines
